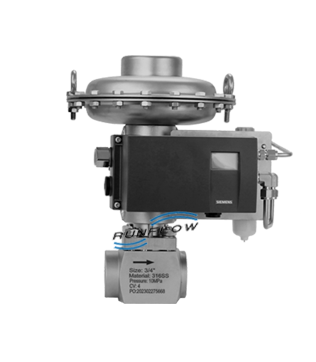

Designed for high-precision applications, the micro-flow regulating valve is widely used in environments where stability and accuracy are crucial, such as hydrogen and oxygen regulation. Its compact size and customizable design make it ideal for tight installation spaces.

Design features    >>>

1. Customization: Standard parts often can't meet the high-precision control requirements in small flow applications. The MV series offers a range of internal valve parts for small flow conditions, with a minimum controllable CV of 0.001. Special materials can also be selected for custom processing;

2. Low leakage: The valve core has minimal leakage when closed, achieving V and VI level leakage, with a soft seal valve core capable of zero leakage;

3. Easy maintenance: Features a snap-in valve seat and top-in valve core design, eliminating the need for special tools, making disassembly and reassembly quick and simple;

4. Stainless steel actuator: The optional 304 stainless steel actuator enhances compressive strength, improving both service life and adjustment accuracy;

5. Large diameter valve core design: Provides high strength while enabling micro-flow control.

Application Fields    >>>

☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Others

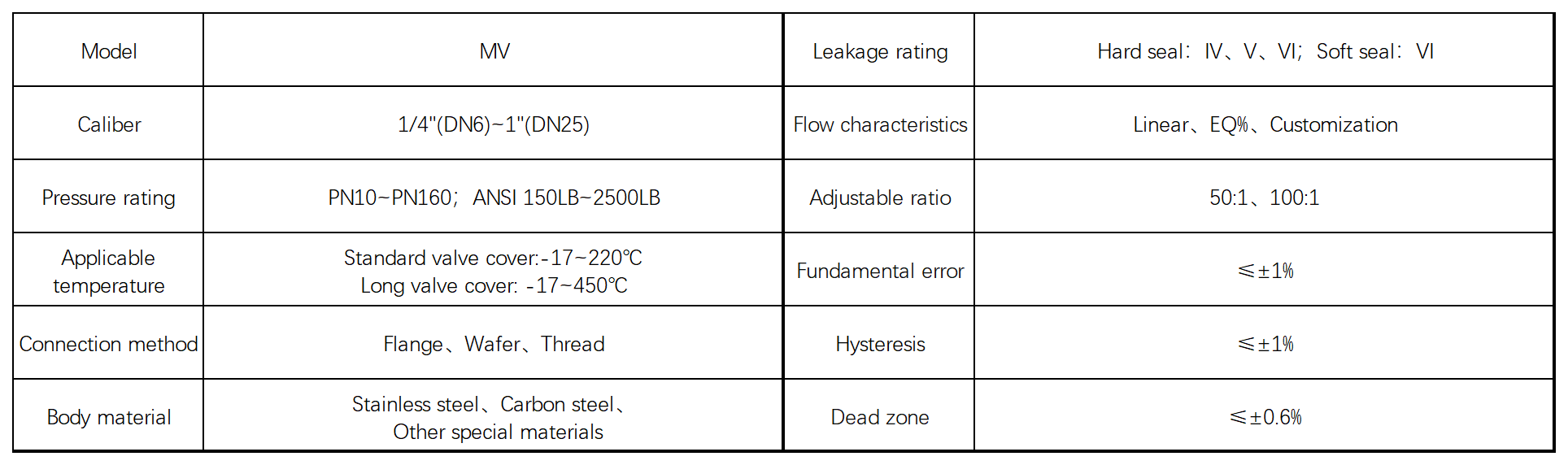

Product parameters    >>>

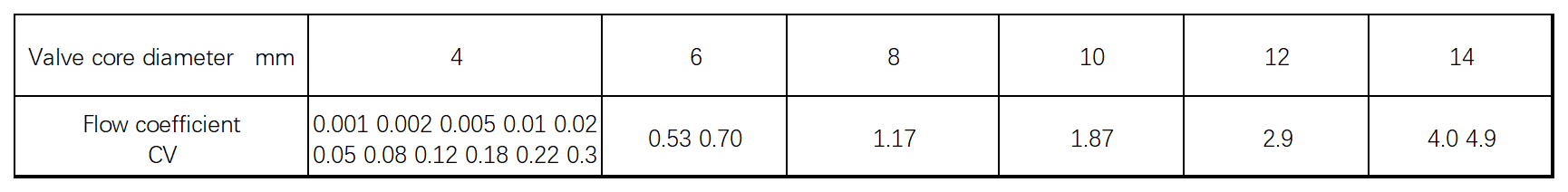

Flow coefficient    >>>

Structural characteristics    >>>

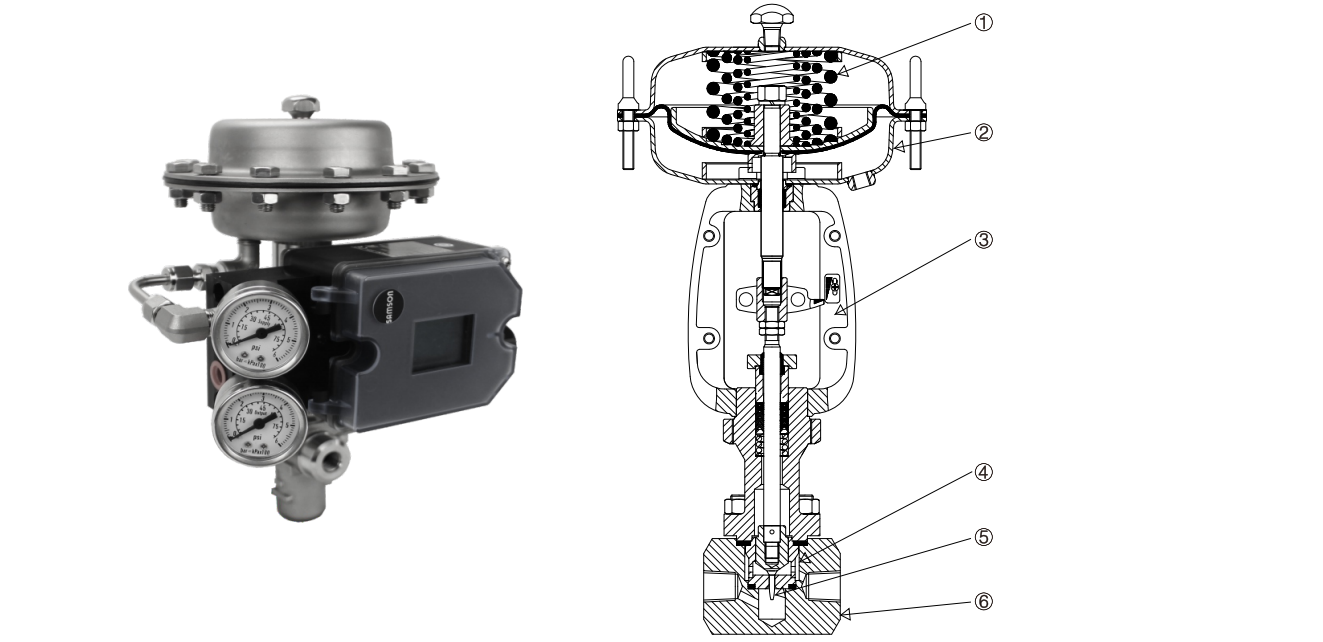

1. Center-mounted spring: The spring is concentrically aligned with the valve stem. Unlike traditional array springs, this design eliminates eccentric forces and improves the stability of the valve stem. (See Figure ① above)

3.Compact valve body: The minimum center height of the valve can reach 253mm, making it compact and suitable for use in skid-mounted equipment. (See Figure ③ above)

4.Quick-release sleeve design: Featuring a snap-in valve seat and top-in valve core, this design eliminates the need for traditional threaded valve seats. No special tools are required, enabling fast disassembly and assembly for easy maintenance. (See Figure ④ above)

5.Heavy-duty valve core: The valve core has a minimum diameter of 6mm, enabling flow rate adjustment even in high-pressure differential conditions. It is robust enough to prevent core breakage. (See Figure ⑤ above)

6.Customized valve body: The connection, material, and structure of the valve can be customized according to needs. (See Figure ⑥ above)

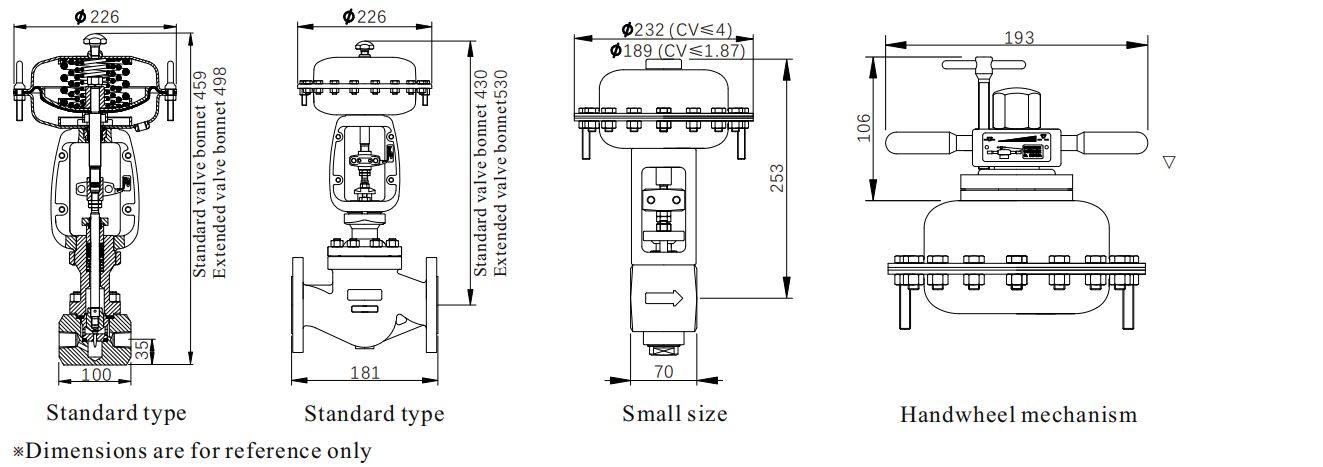

Overall dimensions    >>>
