Product parameters    >>>

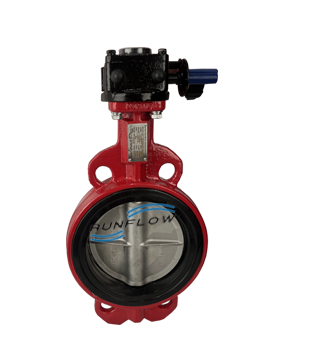

Valve model：DV700

Design criteria：ASME B16.34、GB/T 12238、ISO 5208

Structural length：API609、GB/T 12221-2005

Inspection standard：GB/T 13927、ISO 5208

Temperature resistance range：-29~120℃

Pressure range：PN10、PN16；ANSI 150LB

Caliber range：DN40~DN1200

Connection method：Flange、Wafer、Lug

Valve body material：Stainless steel、Other special materials

Connection standard：ASME B16.5、GB9113、JB79.1-4、HG20592、JIS B2220

Operation mode: Handle、Worm gear；Limit switch (Attached)

Special design：Vacuum design、Powder conveying design

Applicable media: Clean gas、Liquid
