Design features    >>>

1. Small flow resistance: Allows for large circulation;

2. Small torque: Features a simple structure that is easy to maintain;

3. The sealing performance can achieve zero leakage and different degrees of sealing requirements;

4. Low load design: Offers high cost performance and is ideal for controlling low-pressure fluids and high-temperature gases;

5. Various structural forms: Meet different sealing needs;

6.The valve stems are designed with bearing fixation: Ensures strong bearing capacity and light torque;

7.Wide material selectivity: Offers flexibility to meet diverse application needs.

Application fields    >>>

☼Environmental protection industry ☼Ventilation engineering ☼Others

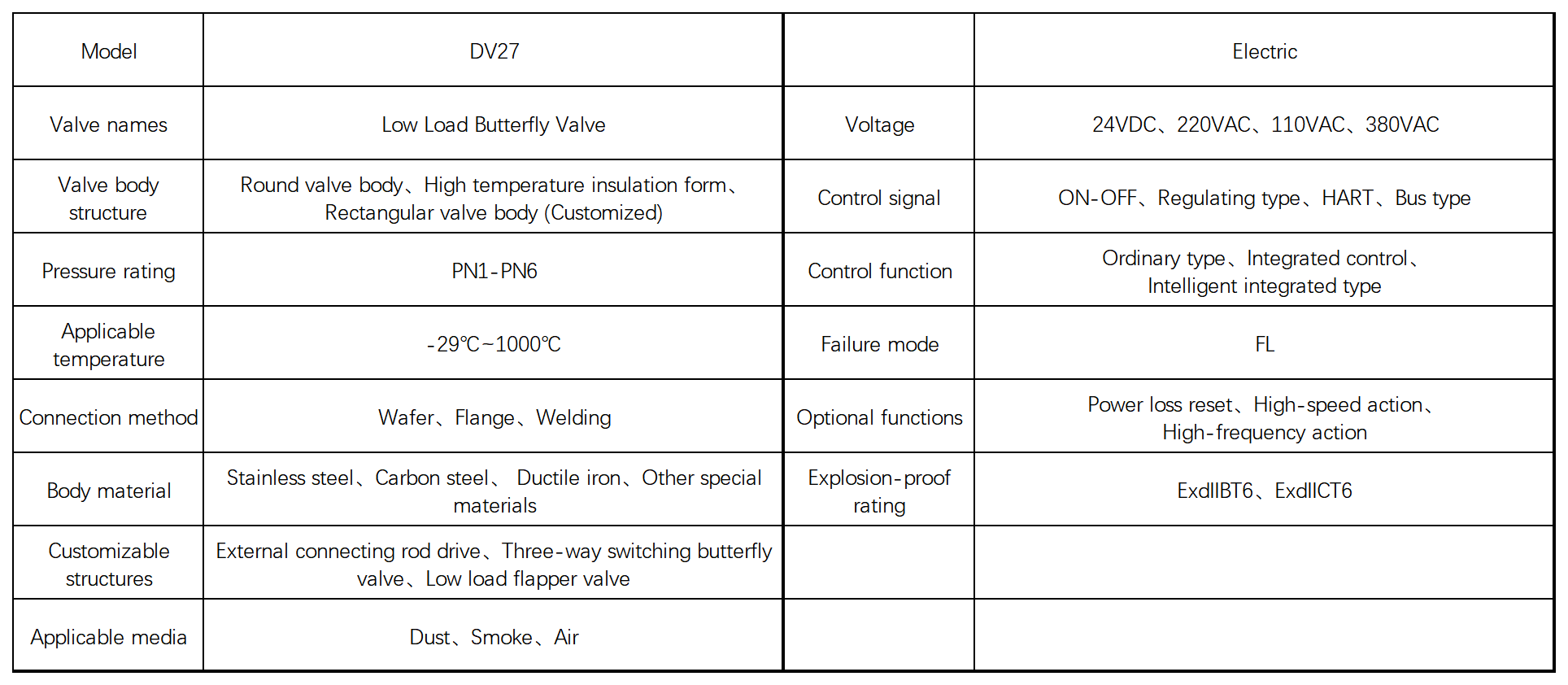

Product parameters    >>>

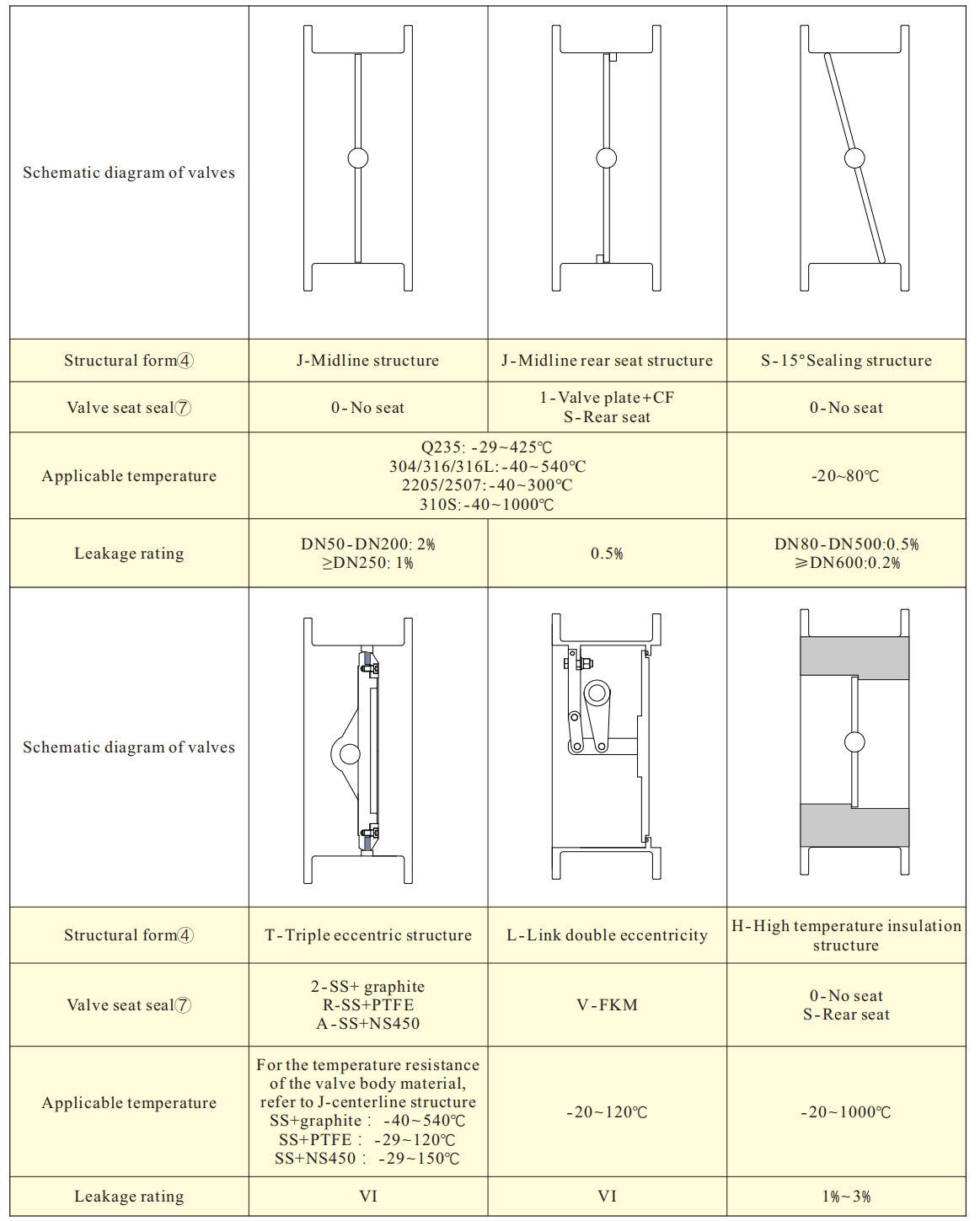

Structural form and performance    >>>
