Design features >>>
1. Zero leakage: The manufacturing process ensures two-way zero leakage performance for the butterfly valve;
2. Integrated valve stem and valve plate: Provides stronger bearing capacity and greater stability;
3. The lining undergoes 100% high frequency EDM inspection, ensuring high reliability;
4. Modular design: Offers versatility and ease of part replacement.
Application fields >>>
☼Chemical industry ☼Petroleum industry ☼Environmental protection industry ☼Pharmaceutical industry ☼Food processing industry ☼Others
Execution standard >>>
Design criteri：API609、GB/T 12238
Structural length：ASME B16.10、GB/T 12221-2005、JIS B2002
Inspection standard：ANSI B16.104、GB/T 26480
Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592、JIS B2220

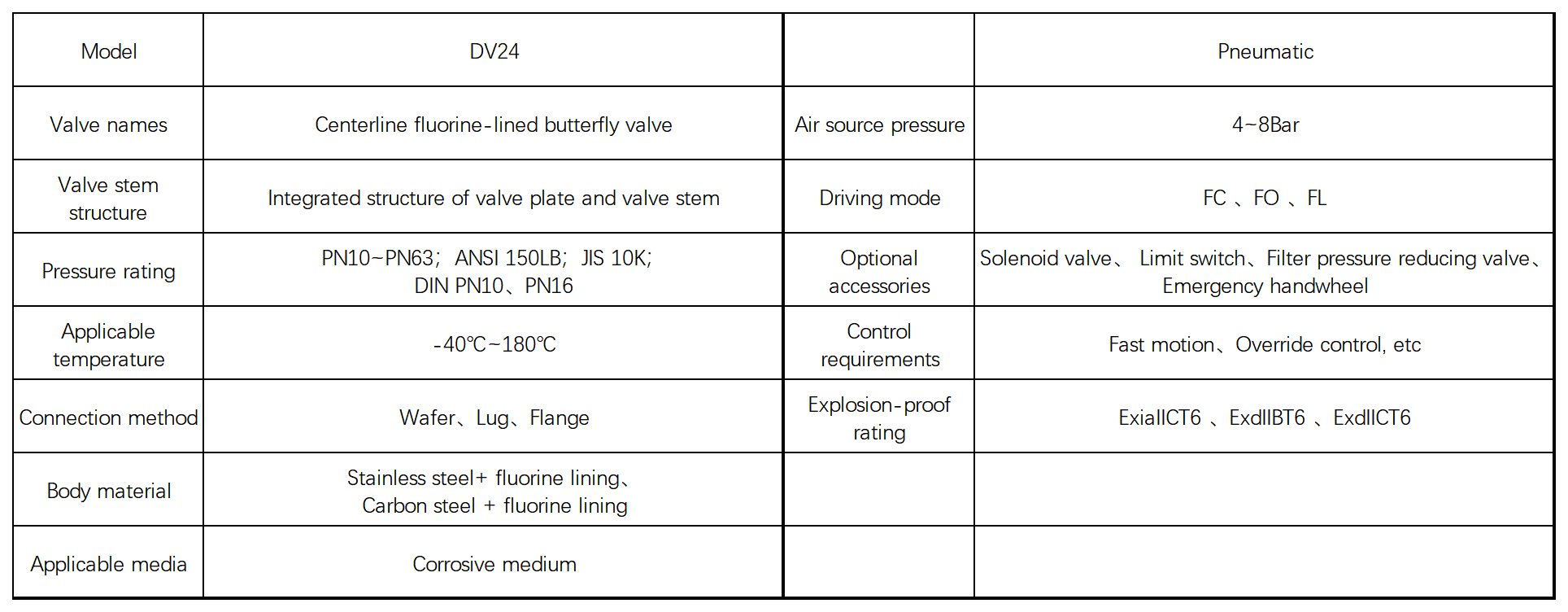

Product parameters >>>
