Design features >>>
1. Integrated valve stem: the valve stem and valve ball are integrated, which has stronger bearing capacity and higher stability;
2. Vacuum-resistant design: The dovetail groove anchor lining fully fits the valve body and can be used in vacuum working conditions;
3. Pressure self-sealing design: The valve seat is designed for self-sealing. As pressure increases, the ball presses against the seat, improving the sealing performance. The higher the pressure, the better the seal;
4. Zero leakage: Exquisite manufacturing process to achieve bi-directional zero leakage performance of ball valve;
5. Optional V-opening design;
6. Corrosion-resistant fluorine material from well-known brands;7. The lining undergoes 100% HF EDM inspection, ensuring high reliability.
Application Fields >>>
☼Chemical industry ☼Semiconductor industry ☼Pharmaceutical industry ☼Food industry ☼Environmental protection industry ☼Paper industry ☼Petroleum industry ☼Electricity industry ☼Light industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015、JIS B2001
Wall thickness standard：ASME B16.10、GB/T 12221-2005、JIS B2002
Leakage rating：ANSI B16.104、GB/T 4213-2008
Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592、JIS B2220

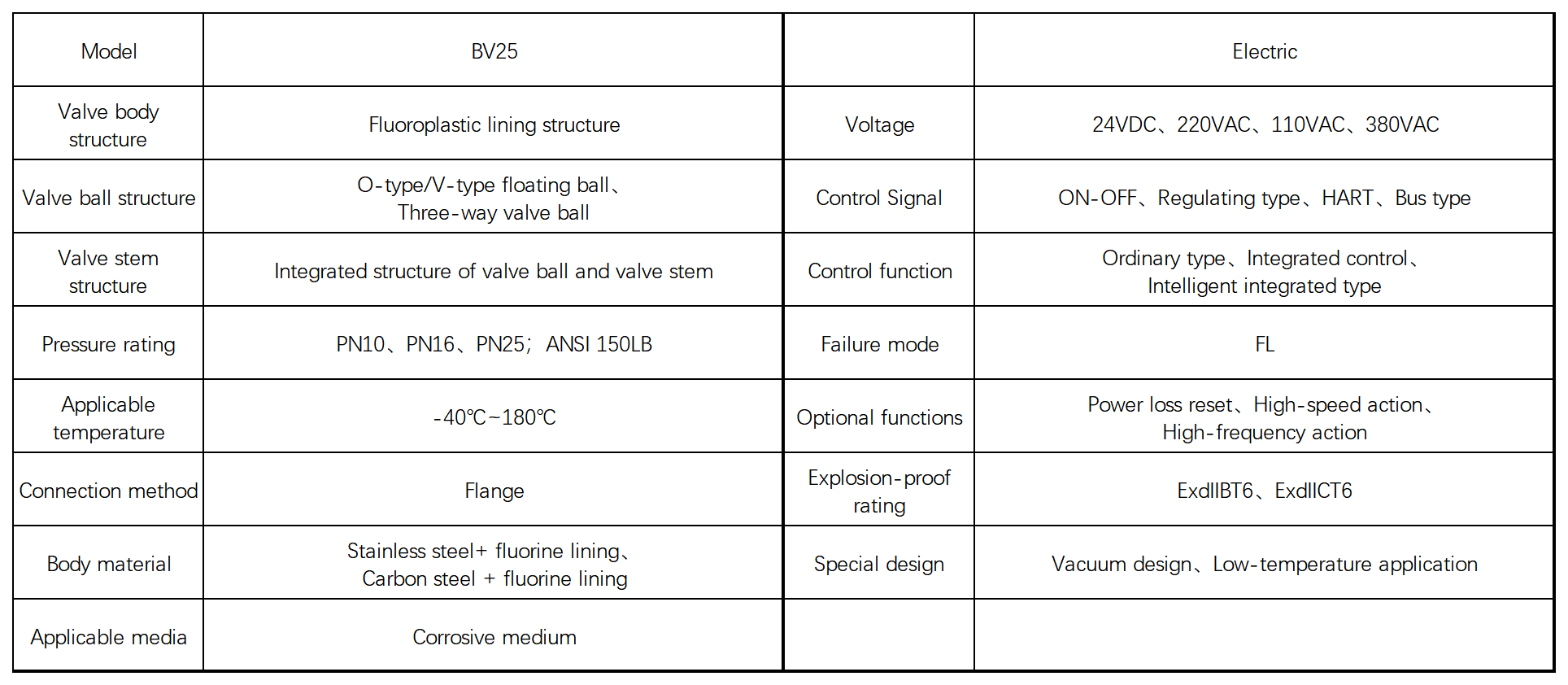

Product parameters >>>
