Design features >>>
1. Flow reduction design;
2. Modular design: Versatile and easy to replace parts;
3. Pressure self-sealing design: The valve seat is designed for self-sealing. As pressure increases, the ball presses against the seat, improving the sealing performance. The higher the pressure, the better the seal;
4. Elastic sealing valve seat design: It uses high-quality imported raw materials, and offers low torque and long service life;
5. Zero leakage: Exquisite manufacturing process to achieve bi-directional zero leakage performance of ball valve;
6. Explosion-proof valve stem: The valve stem is explosion-proof and features an inverted sealing function to prolong the service life of the packing;
7. Self-pressure relief design: The valve features an automatic self-pressure relief function. When the valve is opened, the pressure in the valve cavity will be automatically relieved to avoid overpressure due to temperature rise;8. Anti-static structure: Conductive springs are placed between the valve stem, body and ball to avoid electrostatic ignition and ensure system safety;
9. Multi-seat symmetrical distribution design: This design effectively restrains the swing of the ball and ensures higher reliability.
Application Fields >>>
☼Chemical industry ☼Electricity industry ☼Pharmaceutical industry ☼Petroleum industry ☼Food industry ☼Environmental protection industry ☼Water conservancy industry ☼Others
Execution standard >>>
Design criteria：API608、MSS SP-110
Wall thickness standard：EN 12516-3
Thread standard：ANSI B1.20.1、DIN 2999/259、ISO 7/1、ISO 228/1、JIS B 0203
Clamp standard：ISO02852
Inspection testing：API598、MSS SP-110

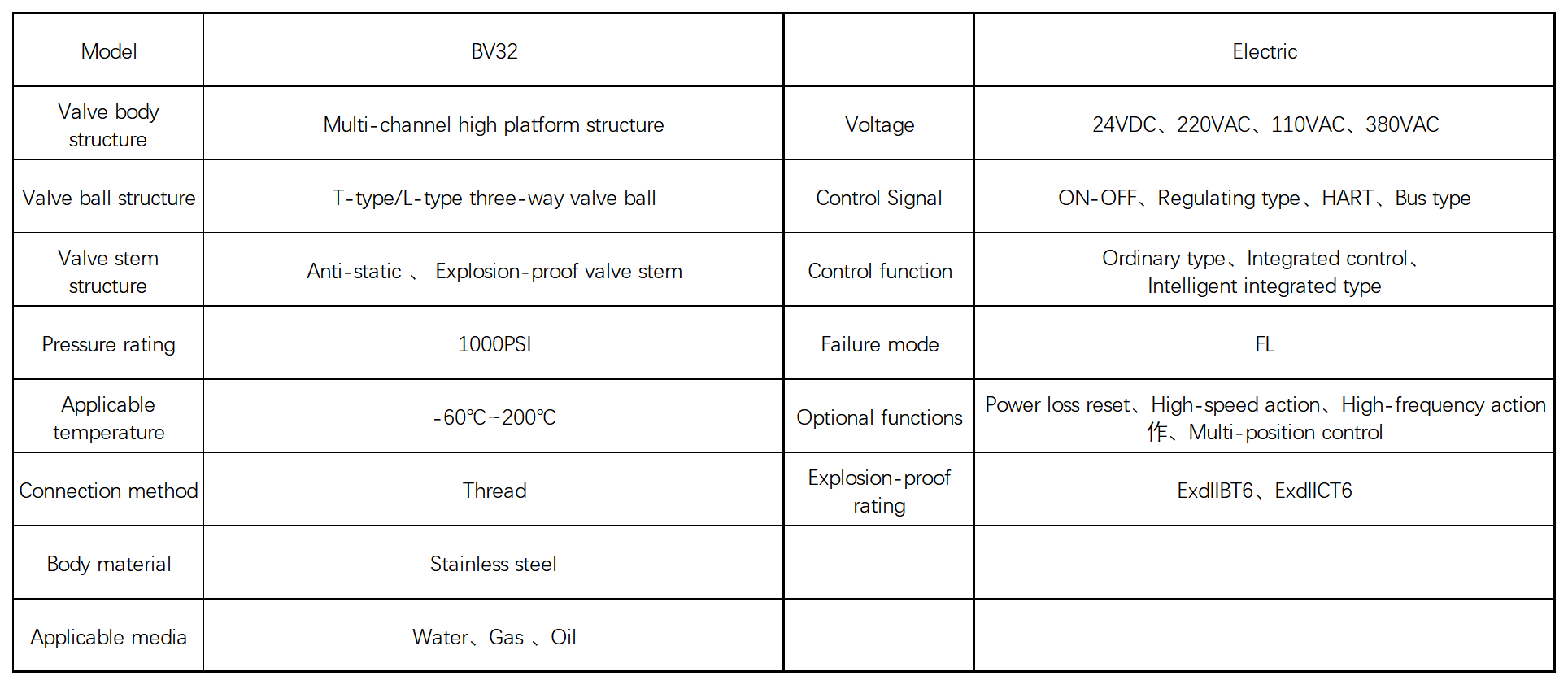

Product parameters >>>

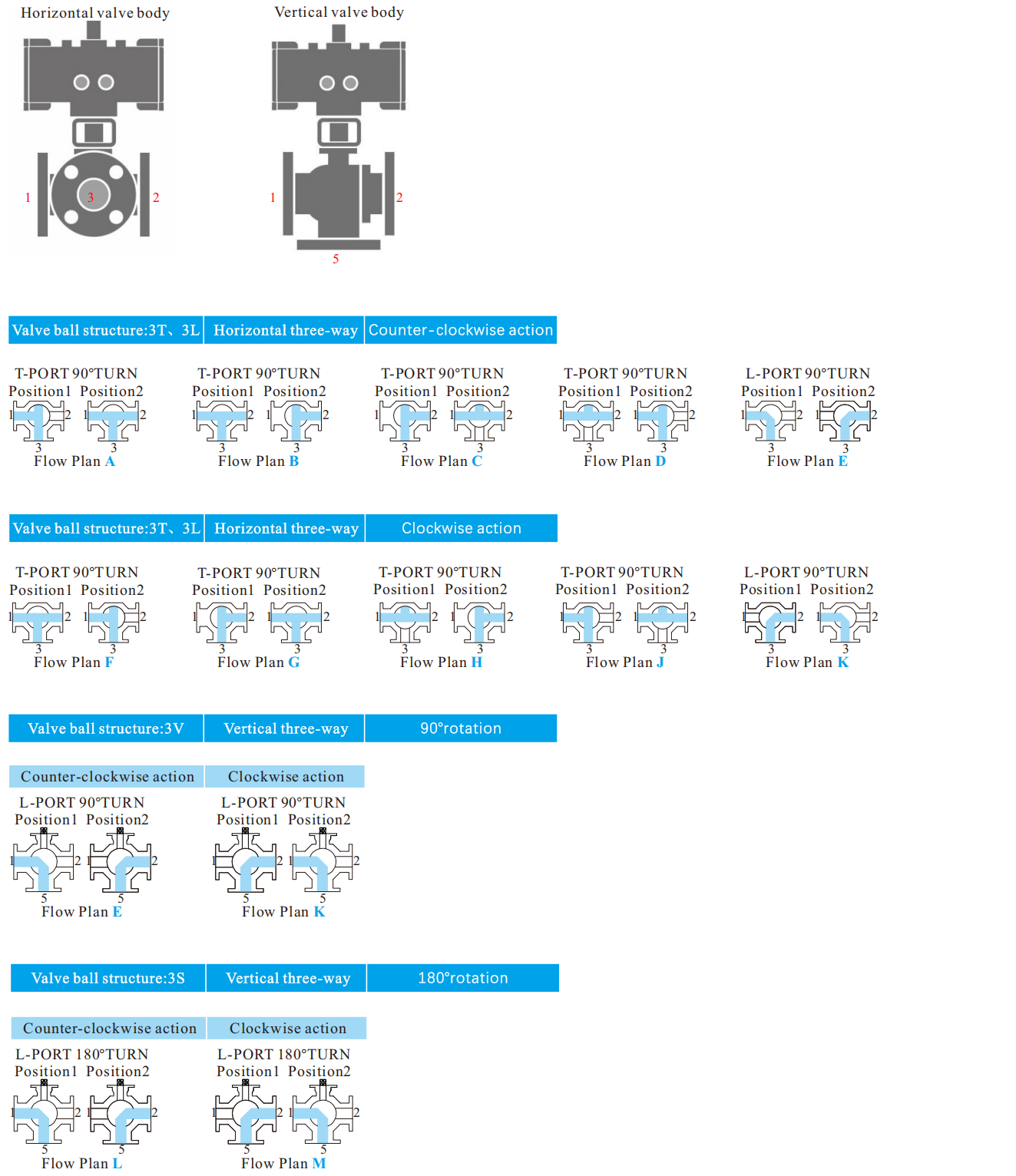

Schematic flow diagram of three-way ball valve >>>

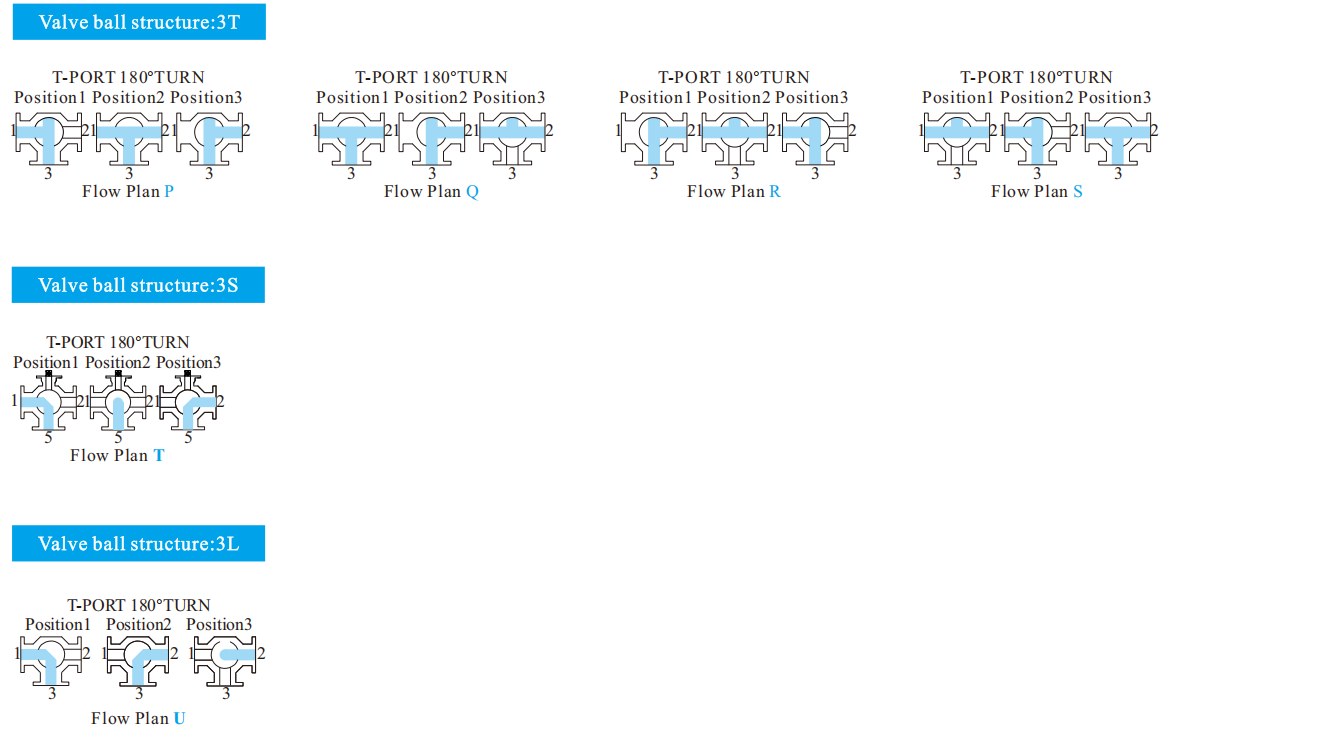

Schematic flow diagram of three-way ball valve ——three-position control >>>
