Design features >>>
1. Zero leakage: Exquisite manufacturing process to achieve bi-directional zero leakage performance of ball valve;
2. Self-pressure relief design: The valve features an automatic self-pressure relief function. When the valve is opened, the pressure in the valve cavity will be automatically relieved to avoid overpressure due to temperature rise;
3. Large diameter ball: The large ball design provides a larger sealing surface, reduces valve seat compression and improves the service life;
4. Pressure self-sealing design: The valve seat is designed for self-sealing. As pressure increases, the ball presses against the seat, improving the sealing performance. The higher the pressure, the better the seal;
5. Soft seal and hard seal configuration: This valve is suitable for different working conditions;6. Modular design: Versatile and easy to replace parts;
7. Fire protection design: The valve meets fire protection standards such as API607 and BS6755;
8. Anti-static structure: Conductive springs are placed between the valve stem, body and ball to avoid electrostatic ignition and ensure system safety;
9. Anti-intrusion valve seat: This design prevents impurities from entering the valve seat cavity and causing jamming;
10. Fixed valve ball: Ensures greater bearing capacity and enhanced stability.
Application Fields >>>
☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Paper industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015、JIS B2001
Wall thickness standard：ASME B16.10、GB/T 12221-2005、JIS B2002
Leakage rating：ANSI B16.104、GB/T 4213-2008
Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592、JIS B2220

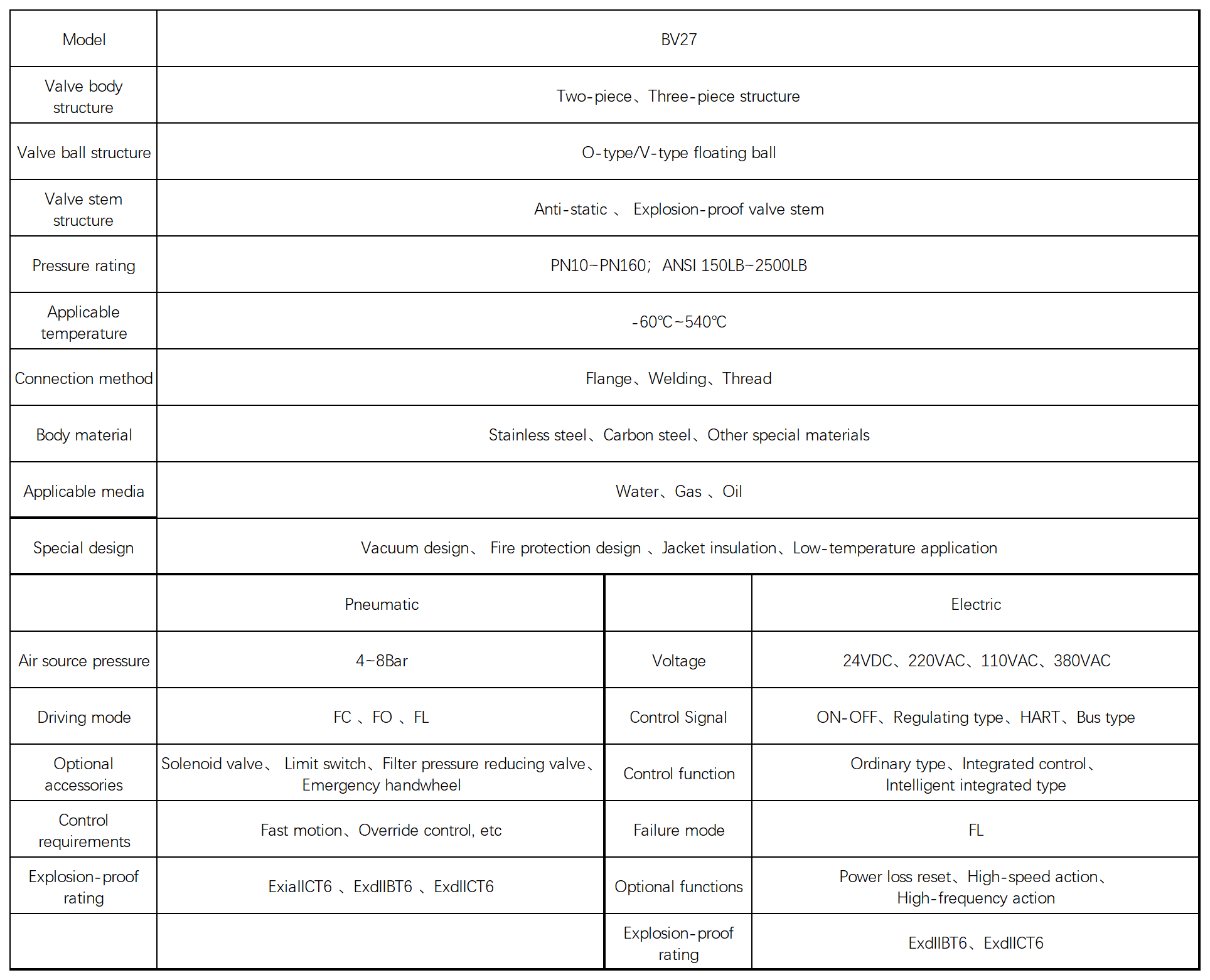

Product parameters >>>
