Design features >>>
1. Zero leakage: Exquisite manufacturing process to achieve bi-directional zero leakage performance of ball valve;
2. Self-pressure relief design: The valve features an automatic self-pressure relief function. When the valve is opened, the pressure in the valve cavity will be automatically relieved to avoid overpressure due to temperature rise;
3. Pressure self-sealing design: The valve seat is designed for self-sealing. As pressure increases, the ball presses against the seat, improving the sealing performance. The higher the pressure, the better the seal;
4. Full-covered sanitary design: The fully covered valve seat design ensures high cleanliness, no retention, and compliance with CIP SIP sterilization and cleaning requirements. The sanitary PTFE valve seat meets FDA117.2600 standards;
5. Modular design: Versatile and easy to replace parts;6. Anti-static structure: Conductive springs are placed between the valve stem, body and ball to avoid electrostatic ignition and ensure system safety;
7. Explosion-proof valve stem: The valve stem is explosion-proof and features an inverted sealing function to prolong the service life of the packing.
Application Fields >>>
☼Chemical industry ☼Pharmaceutical industry ☼Food industry ☼Cosmetics industry ☼Beverage and dairy industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、API 608
Wall thickness standard：EN 12516-3
Connection standard：ASME B16.25、ISO 2852
Inspection testing：API598、EN12266

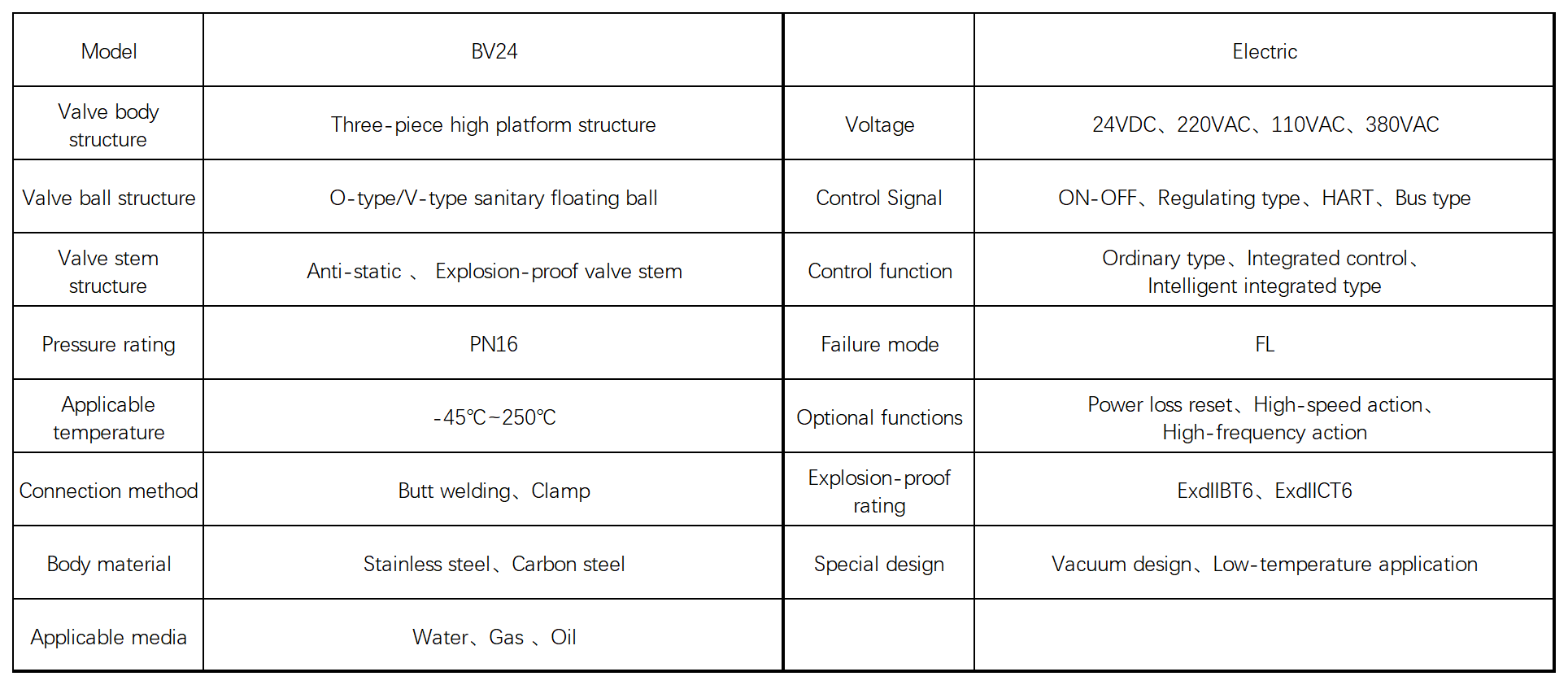

Product parameters >>>
