Design features    >>>

1. The unique RF curve cutout design enables equal percentage adjustment, making it a suitable replacement for single-seat regulating valves;

2. Compact size and light weight: Compared with single-seat regulating valves with similar functions, it is more compact and lighter, and is especially suitable for applications where size and weight are important factors;

3. Zero leakage: Exquisite manufacturing process to achieve bi-directional zero leakage performance of ball valve;

4. Self-pressure relief design: The valve features an automatic self-pressure relief function. When the valve is opened, the pressure in the valve cavity will be automatically relieved to avoid overpressure due to temperature rise;

5. Large diameter ball: The large ball design provides a larger sealing surface, reduces valve seat compression and improves the service life;

6. Modular design: Versatile and easy to replace parts;

7. Fire protection design: The valve meets fire protection standards such as API607 and BS6755;

8. Anti-static structure: Conductive springs are placed between the valve stem, body and ball to avoid electrostatic ignition and ensure system safety;

9. Elastic sealing valve seat design: It uses high-quality imported raw materials, and offers low torque and long service life;

10. Explosion-proof valve stem: The valve stem is explosion-proof and features an inverted sealing function to prolong the service life of the packing;

11. High cost performance: Compared to other regulating valves with similar functions, this valve offers superior cost-effectiveness.

Application Fields    >>>

☼Chemical industry ☼Petroleum industry ☼Natural gas industry ☼Electricity industry ☼Metallurgical industry ☼Pharmaceutical industry ☼Food industry ☼Textile industry ☼Paper industry ☼Others

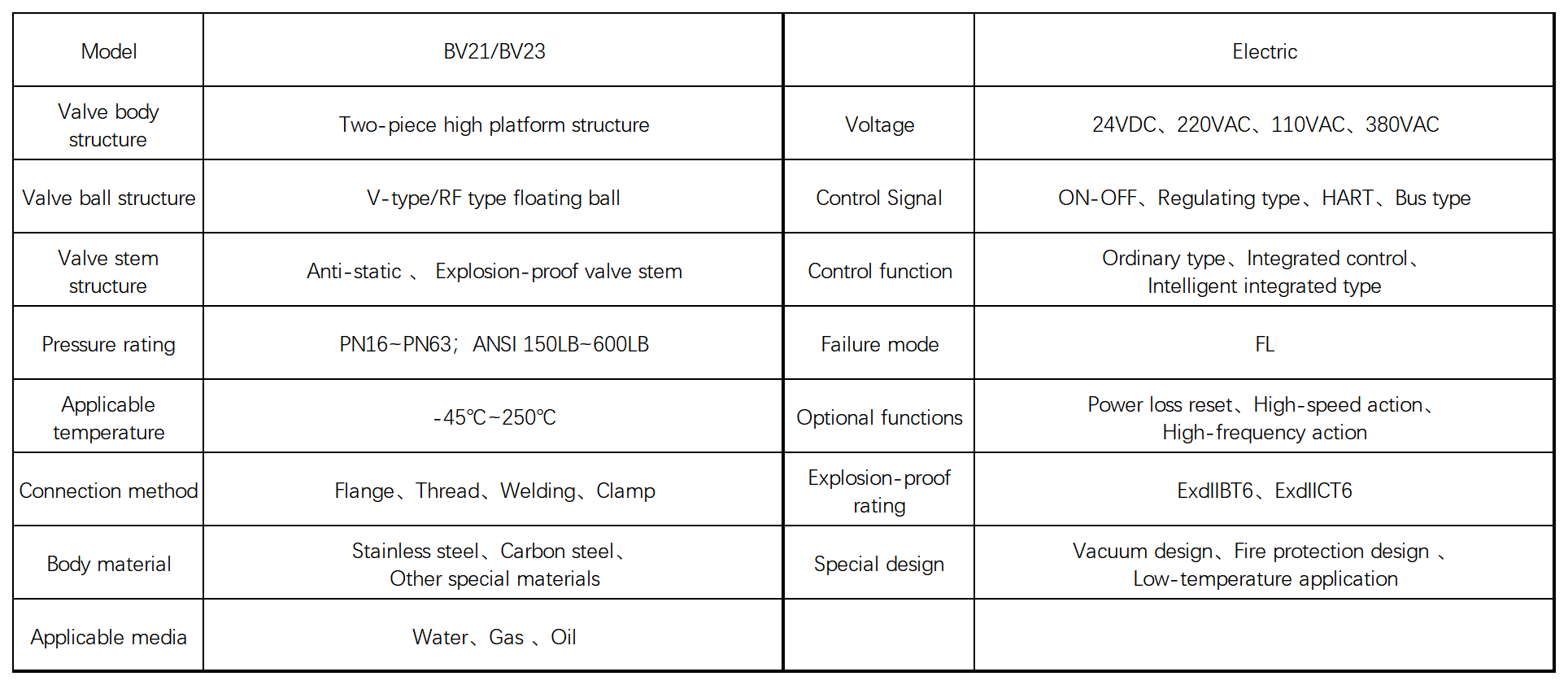

Product parameters    >>>

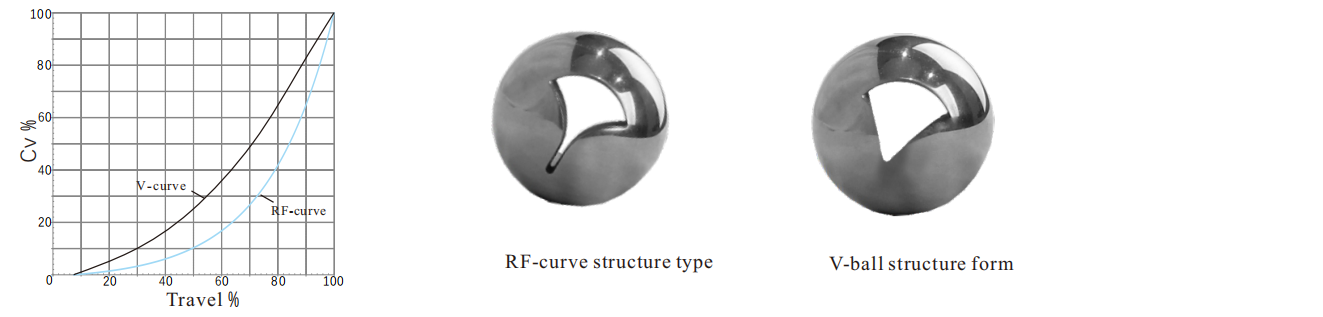

Flow coefficient    >>>
