Design features >>>
1. The internal parts adopt a variety of structural types: Allow for a large allowable pressure difference;
2. Single-stage step-down type: Provides strong anti-blocking ability and large circulation capacity;
3. Multi-stage step-down type: Ideal for applications with large pressure drops, low noise, and other challenging conditions;
4. Quick-release structure: This design simplifies maintenance and part replacement;
5. Versatile connection options: Suitable for installations in various pipeline configurations.
Application Fields >>>
☼Chemical industry ☼Petroleum industry ☼Metallurgical industry ☼Electricity industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015
Structural length：IEC60534-3-1-2001、GB/T 12221-2005
Leakage rating：ANSI B16.104、GB/T4213-2008
Connection standard：Flange ASME B16.5、GB9113、JB79.1~4、HG20592
Product parameters >>>

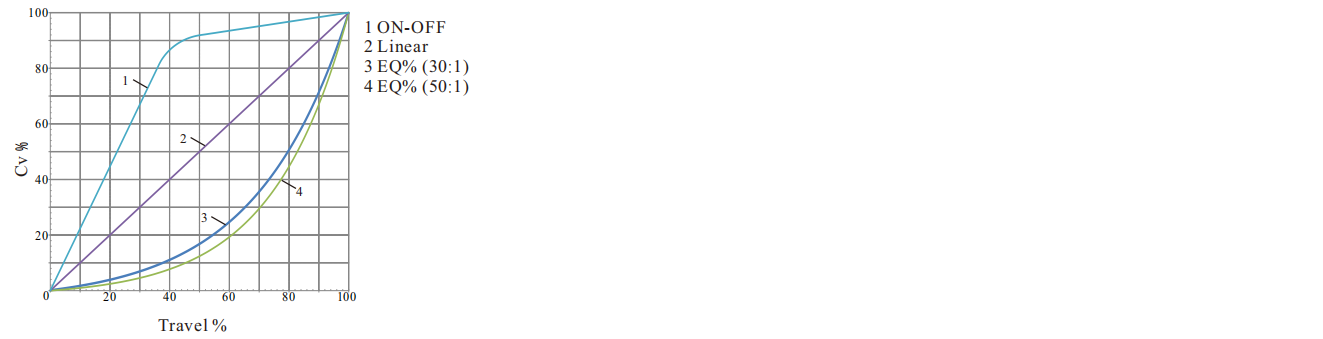

Flow characteristics >>>

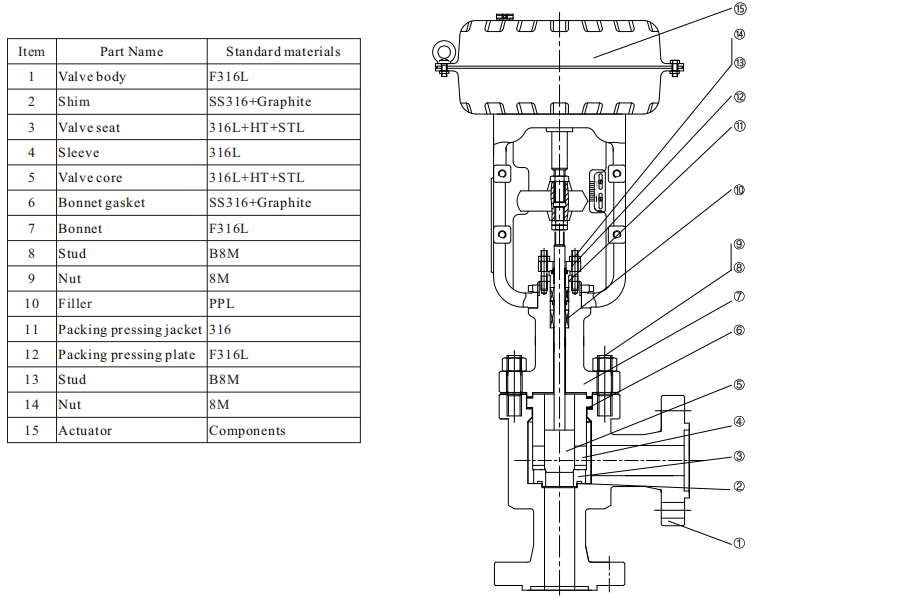

Main components and materials >>>
Pneumatic membrane actuator >>>
L series pneumatic membrane actuator
1. Universal design
2. Wide range of applications
3. Large thrust and long travel
4. Customizable design options
5. Compressed air: 3.2 bar
