Design features >>>
1. Zero leakage: The valve utilizes a fully lined soft sealing structure to ensure zero leakage;
2. Compared with traditional regulating valves, it is smaller and lighter;
3. Corrosion-resistant function;
4. Quick-release structure: This design simplifies maintenance and part replacement.
Application Fields >>>
☼Chemical industry ☼Petroleum industry ☼Metallurgical industry ☼Electricity industry ☼Textile industry ☼Pharmaceutical industry ☼Paper industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015
Structural length：IEC60534-3-1-2001、GB/T 12221-2005
Leakage rating：ANSI B16.104、GB/T4213-2008
Connection standard：Flange ASME B16.5、GB9113、JB79.1~4、HG20592

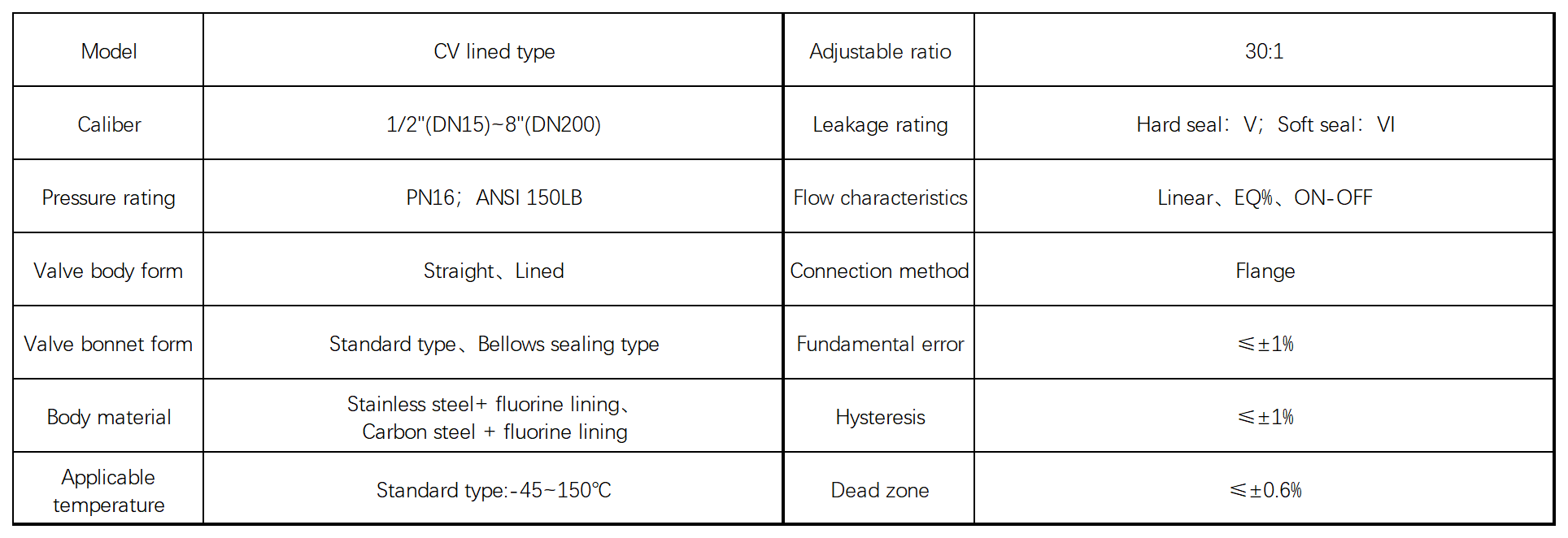

Product parameters >>>

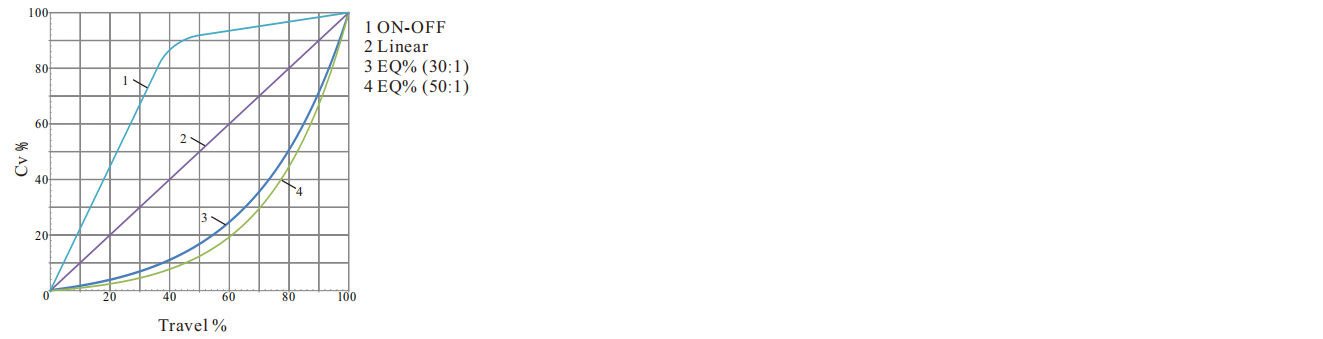

Flow characteristics >>>

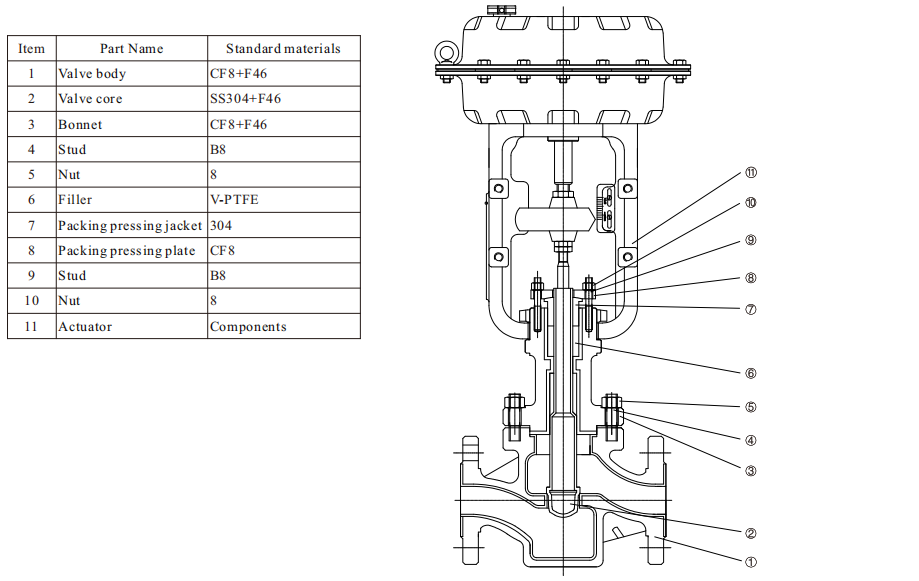

Main components and materials >>>
Pneumatic membrane actuator >>>

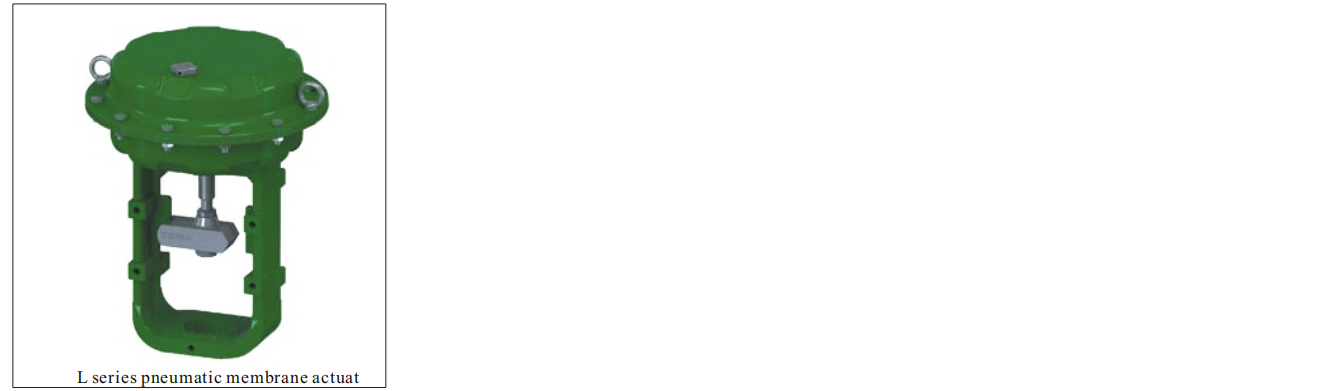

L series pneumatic membrane actuator
1. Universal design
2. Wide range of applications
3. Large thrust and long travel
4. Customizable design options
5. Compressed air: 3.2 bar
