Design features >>>
1. Reliable control with high accuracy;
2. Modular design: Versatile and easy to replace parts;
3. Quick-release structure: Simplifies maintenance and component replacement;
4. Pressure-balanced sleeve valve core: The small opening and closing force allows it to handle high-pressure differences with minimal actuator thrust;
5. Porous sleeve design: Through porous throttling, the medium is slowed by internal collisions, reducing flow rate and energy consumption.
Application Fields >>>
☼Chemical industry ☼Petroleum industry ☼Metallurgical industry ☼Electricity industry ☼Textile industry ☼Pharmaceutical industry ☼Paper industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015
Structural length：IEC60534-3-1-2001、GB/T 12221-2005
Leakage rating：ANSI B16.104、GB/T4213-2008
Connection standard：Flange ASME B16.5、GB9113、JB79.1~4、HG20592

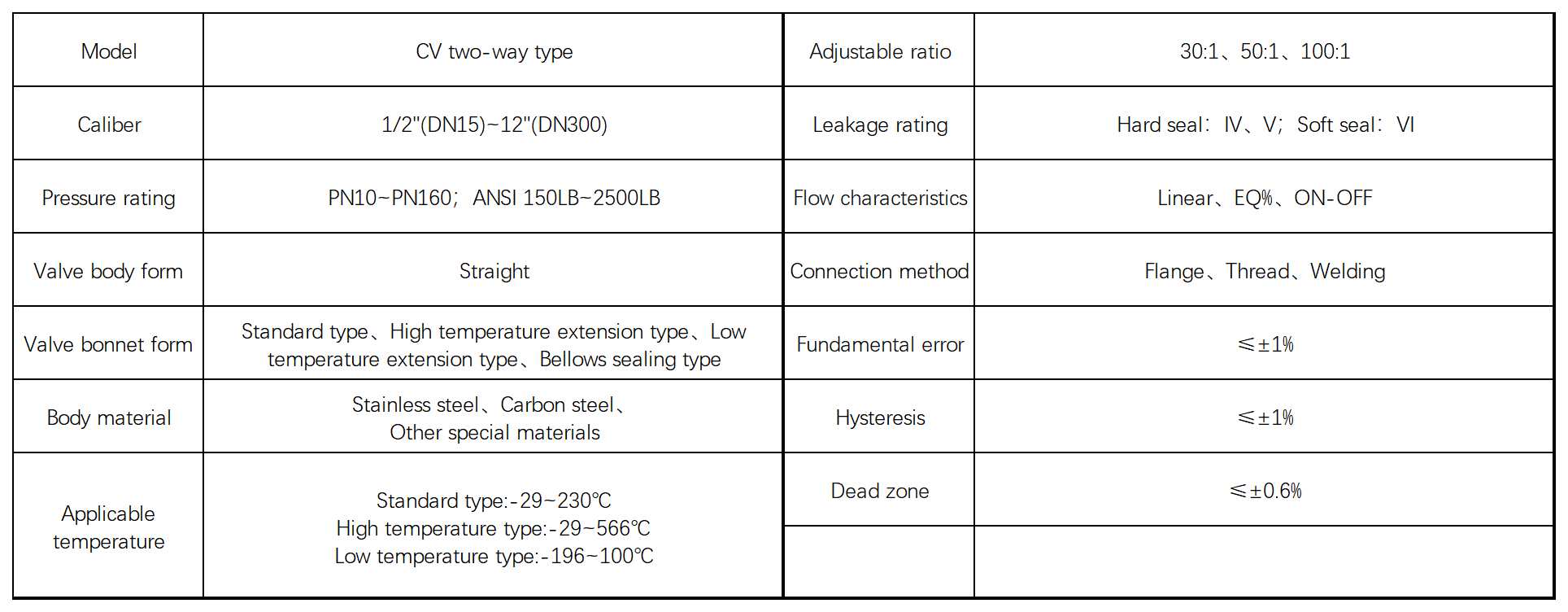

Product parameters >>>

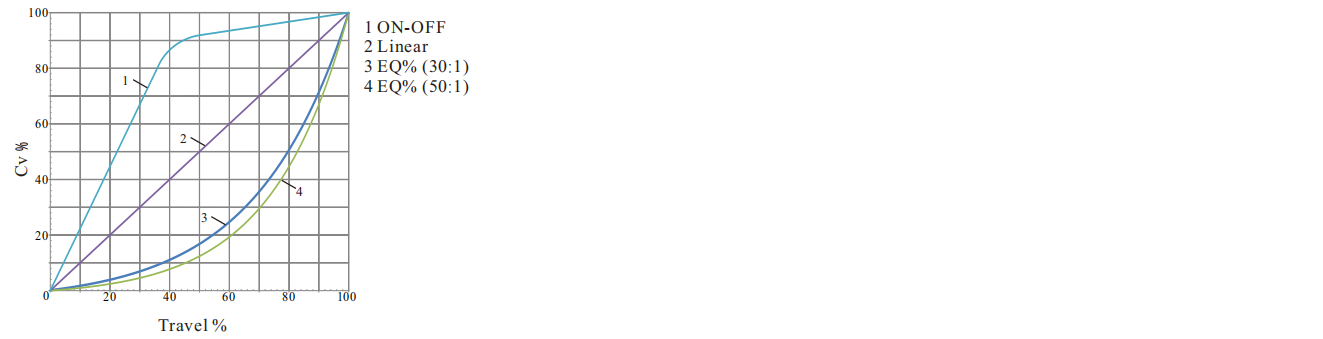

Flow coefficient >>>

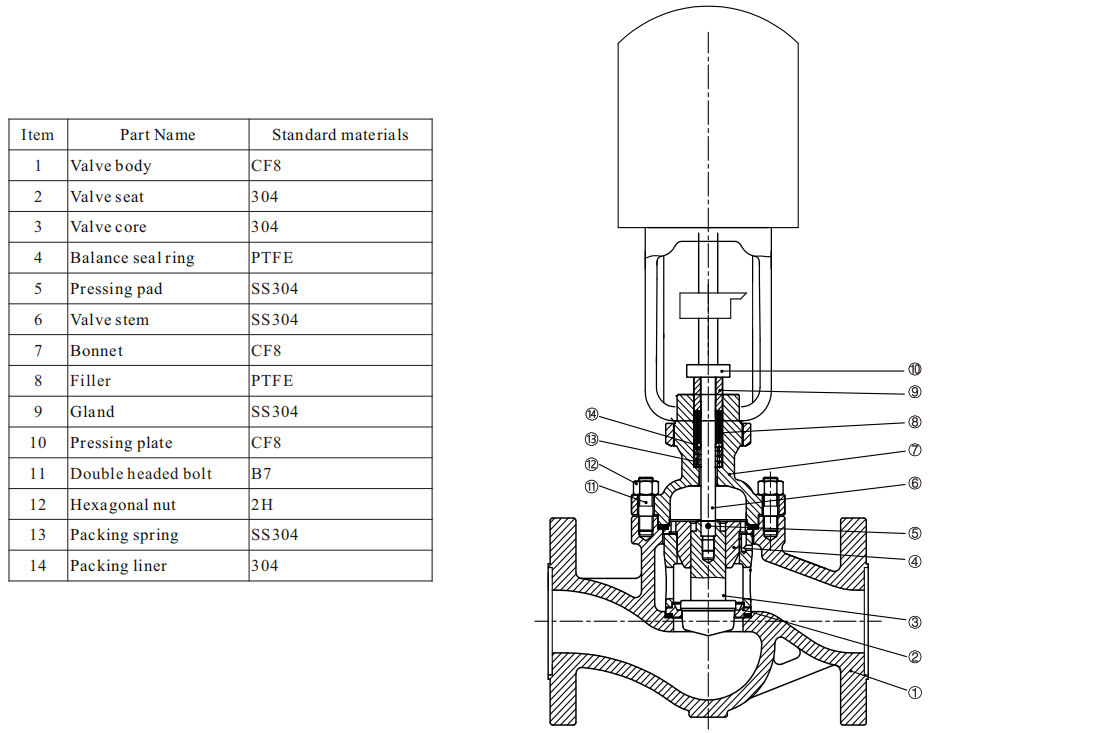

Main components and materials >>>
