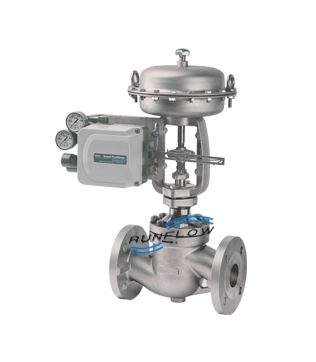

Design features >>>
1. Reliable control with high accuracy;
2. Optional stainless steel actuator: This option enhances the valve's appearance, prevents rust, and improves its stability and longevity;
3. Modular design: Versatile and easy to replace parts;
4. Quick-release structure: Simplifies maintenance and component replacement;
5. Pressure-balanced sleeve valve core: The small opening and closing force allows it to handle high-pressure differences with minimal actuator thrust;
6. Porous sleeve design: Through porous throttling, the medium is slowed by internal collisions, reducing flow rate and energy consumption.
Application Fields >>>
☼Chemical industry ☼Petroleum industry ☼Metallurgical industry ☼Electricity industry ☼Textile industry ☼Pharmaceutical industry ☼Paper industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015
Structural length：IEC60534-3-1-2001、GB/T 12221-2005
Leakage rating：ANSI B16.104、GB/T4213-2008
Connection standard：Flange ASME B16.5、GB9113、JB79.1~4、HG20592
Product parameters >>>

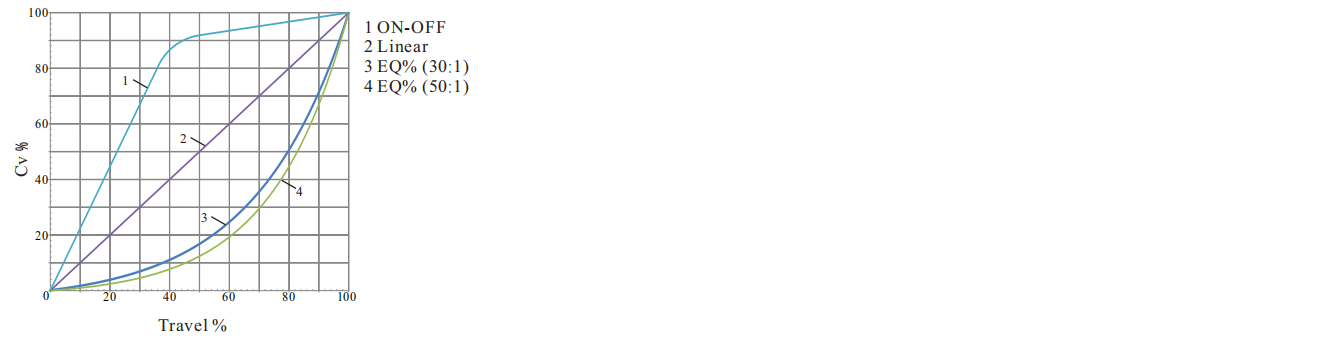

Flow coefficient >>>

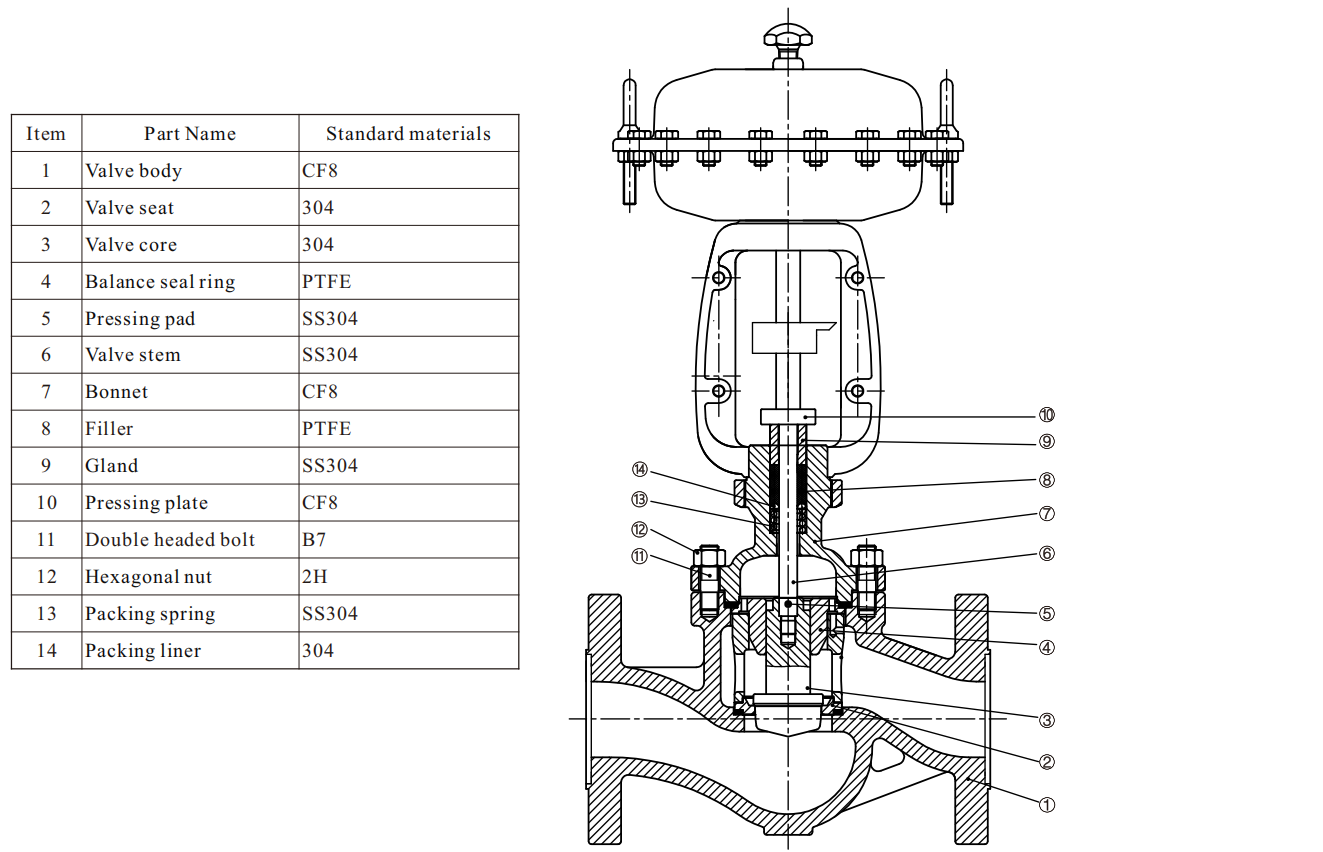

Main components and materials >>>

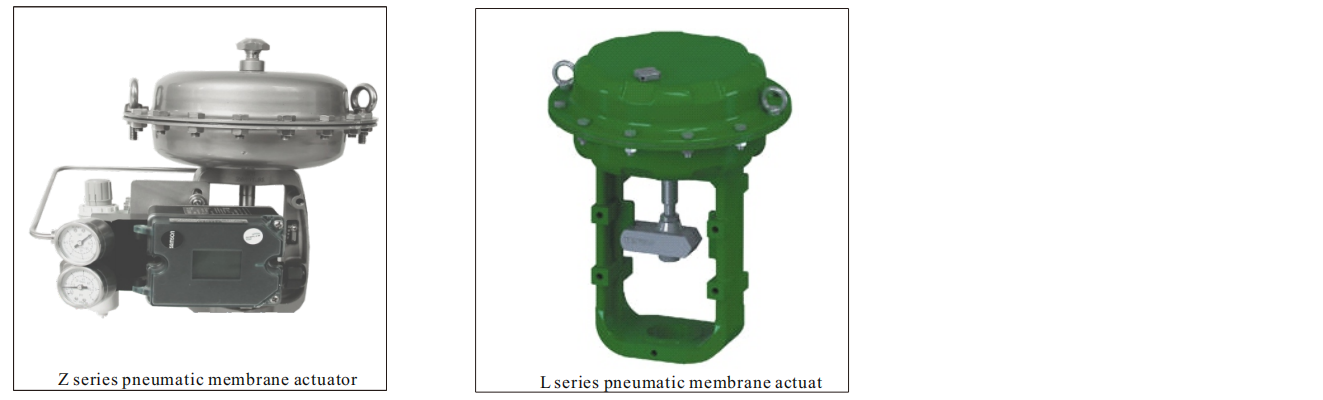

Pneumatic membrane actuator >>>
Z series pneumatic membrane actuator
1. Made from stainless steel
2. Long service life
3. Modular design
4. High versatility of components
5. Compressed air: 3 bar
L series pneumatic membrane actuator
1. Universal design
2. Wide range of applications
3. Large thrust and long travel
4. Customizable design options
5. Compressed air: 3.2 bar
