Design features    >>>

1. Safety overload protection: Effectively unloads overload pressure under abnormal conditions, preventing valve damag；

2. Stainless steel actuator: This option enhances the valve's appearance, prevents rust, and improves its stability and longevity;

3. Modular design: Versatile and easy to replace parts;

4. Special valve body: The internal structure adopts a balanced design for high precision and stable control;

5. Wide pressure regulation range: The standard pressure regulation range is 1.5-3600Kpa, with custom configurations available;

6. Small size: The built-in spring structure makes the valve more compact. Custom threaded valve bodies allow for further reduction in overall size;

7. Safe discharge design: The membrane head includes a discharge port. A drainage pipe can be installed to direct leakage to a safe area in case of diaphragm damage.

Application fields    >>>

☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Others

Execution standard    >>>

Design criteria：ASME B16.34、GB/T 12224-2015

Structural length：IEC60534-3-1-2001、GB/T 12221-2005

Leakage rating：ANSI B16.104、GB/T4213-2008

Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592

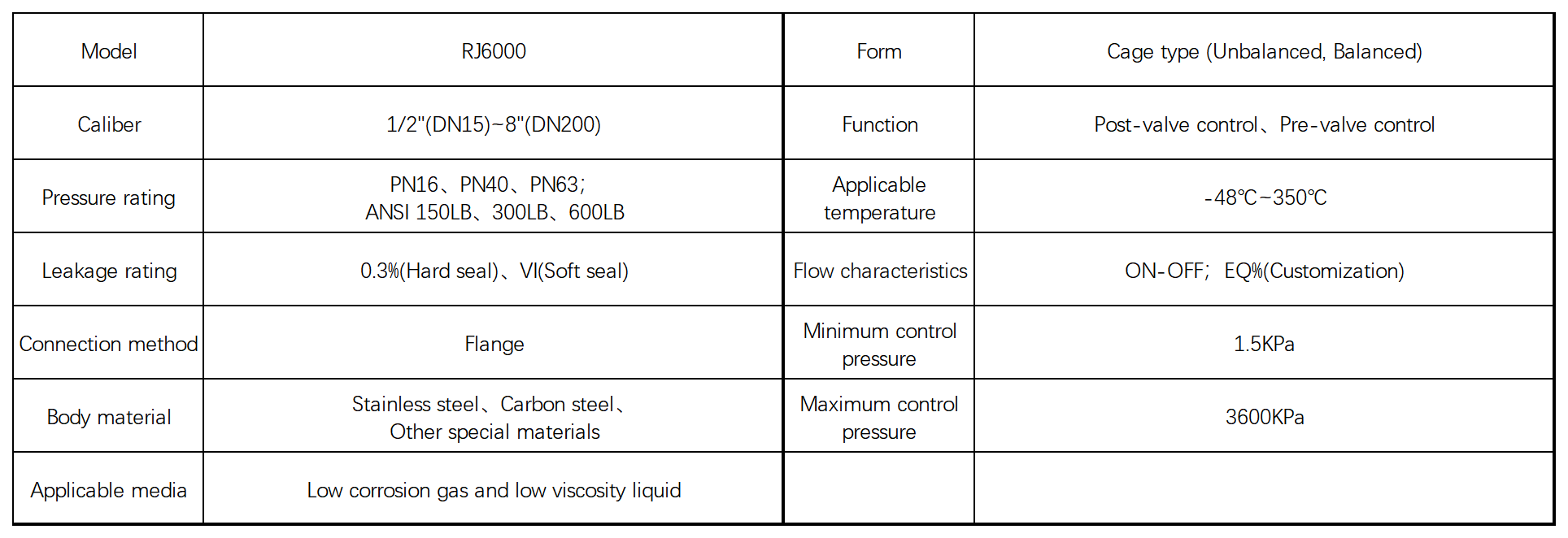

Product parameters    >>>

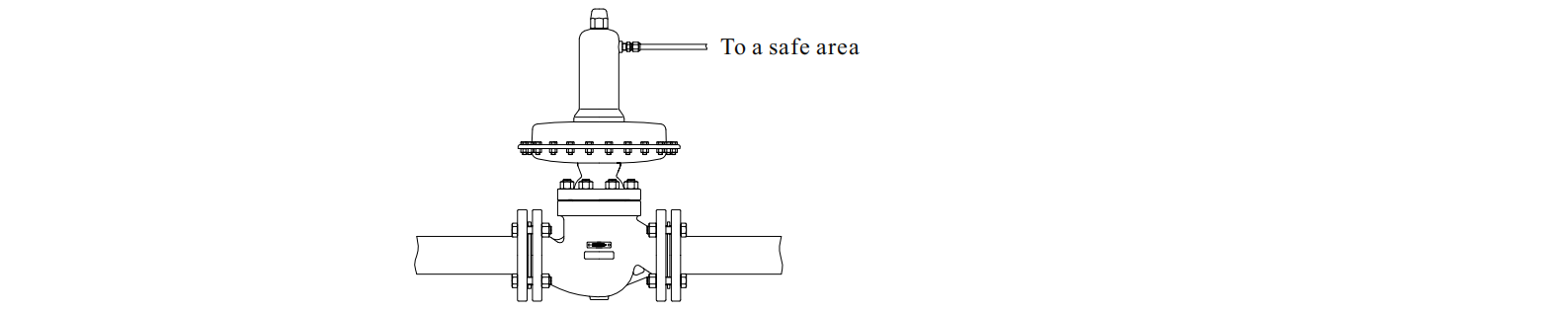

Safe discharge    >>>

In the event that the diaphragm of the pressure regulating valve is damaged, medium leakage may occur. If leakage is not permitted on site, you can install a drainage pipe on the valve actuator to discharge the medium to a safe area.

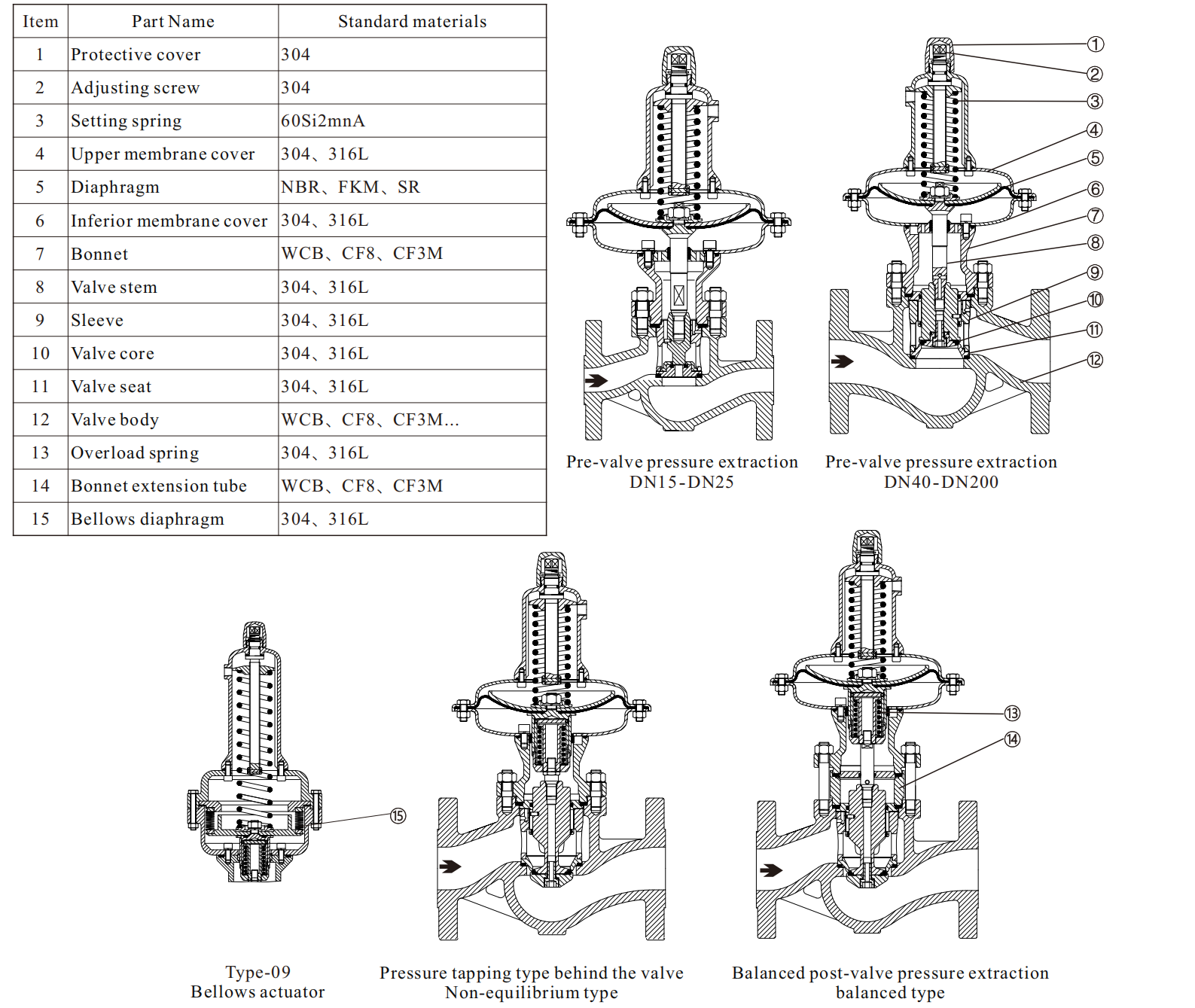

Main components and materials    >>>
