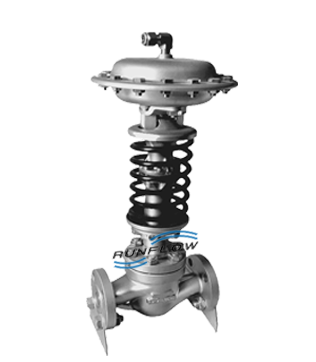

The RJ3000/4000 series self-operated regulating valve is a versatile pressure-regulating valve with direct spring action. It can be used for control before or after the valve and is widely applied in low-corrosive gas and low-viscosity liquid environments. It is a high-precision, long-life valve.
Design features >>>
1. Safety overload protection: Effectively unloads overload pressure under abnormal conditions, preventing valve damag；
2. Stainless steel actuator: This option enhances the valve's appearance, prevents rust, and improves its stability and longevity;
3. Sliding friction-free design: The valve stem incorporates a long bellows structure, and is supplemented with a backup seal, ensuring reliable sealing at the valve stem and greatly improving the valve's sensitivity;
4. Modular design: Versatile and easy to replace parts;
5. High precision: The bellows valve stem reduces friction compared to traditional packing structures. Optimized spring and actuator designs enables the best combination that guarantees the best performance for precise pressure control.
Application fields >>>
☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Others
Execution standard >>>
Design criteria：ASME B16.34、GB/T 12224-2015
Structural length：IEC60534-3-1-2001、GB/T 12221-2005
Leakage rating：ANSI B16.104、GB/T4213-2008
Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592

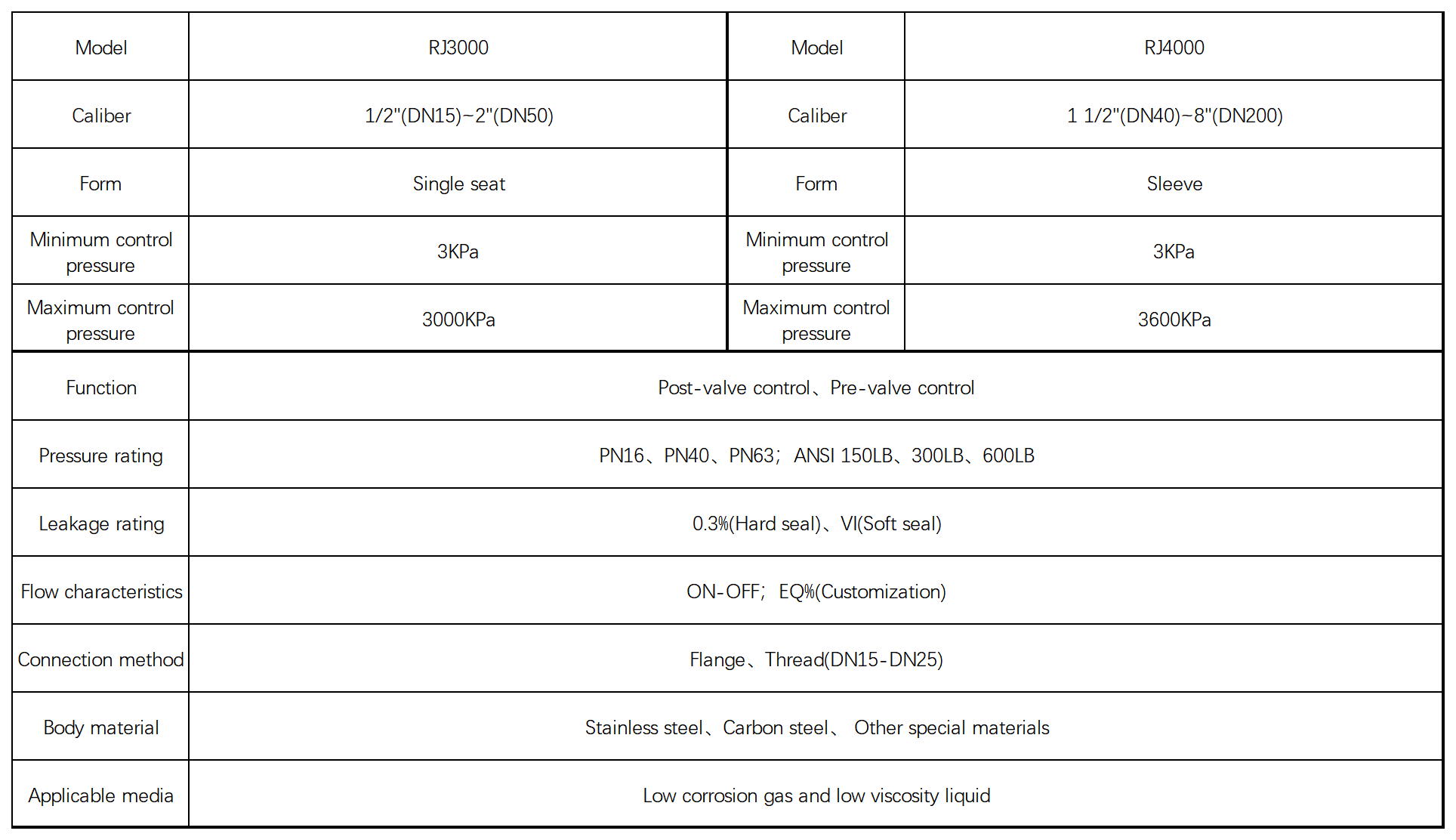

Product parameters >>>

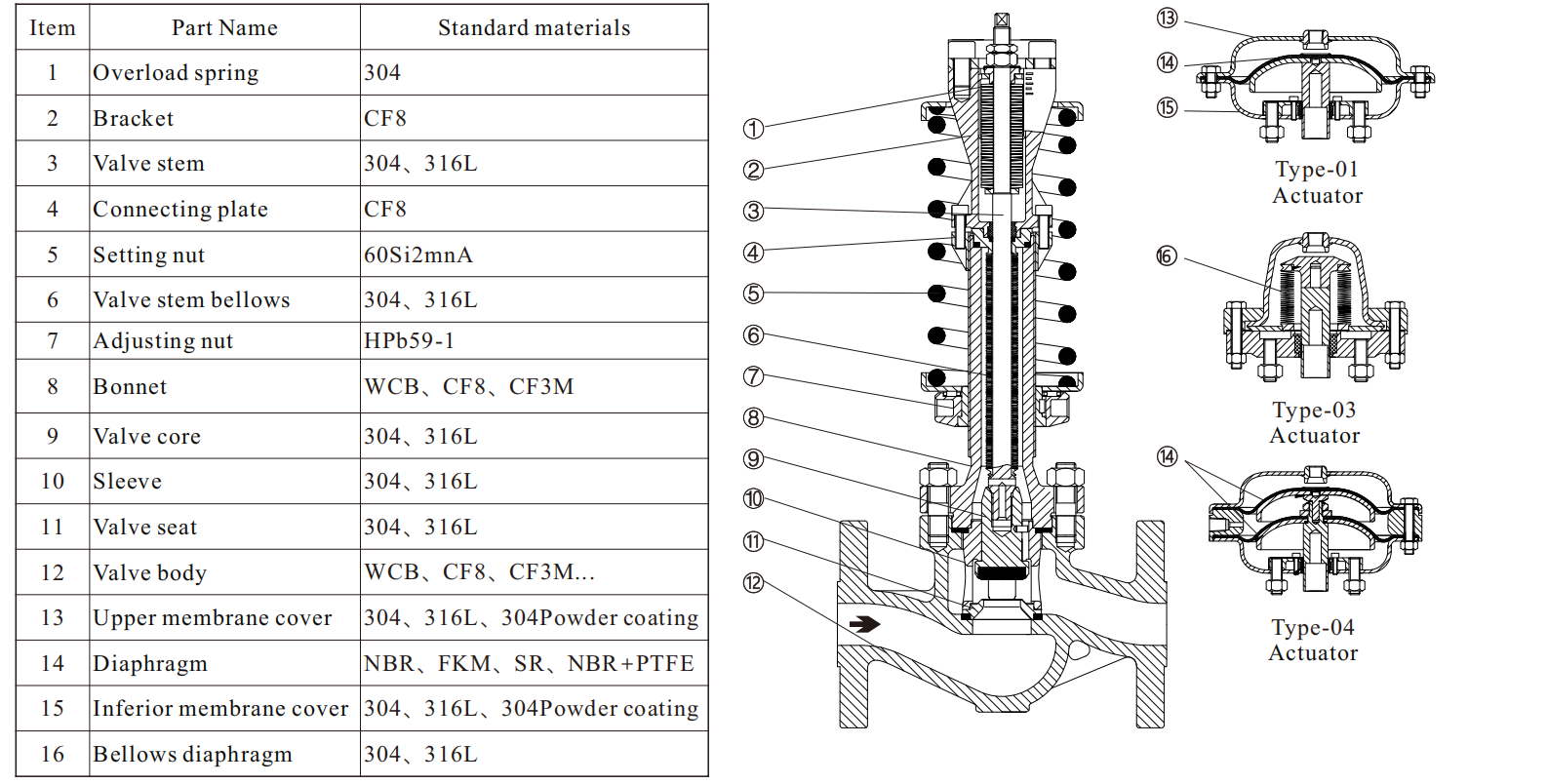

Main components and materials >>>

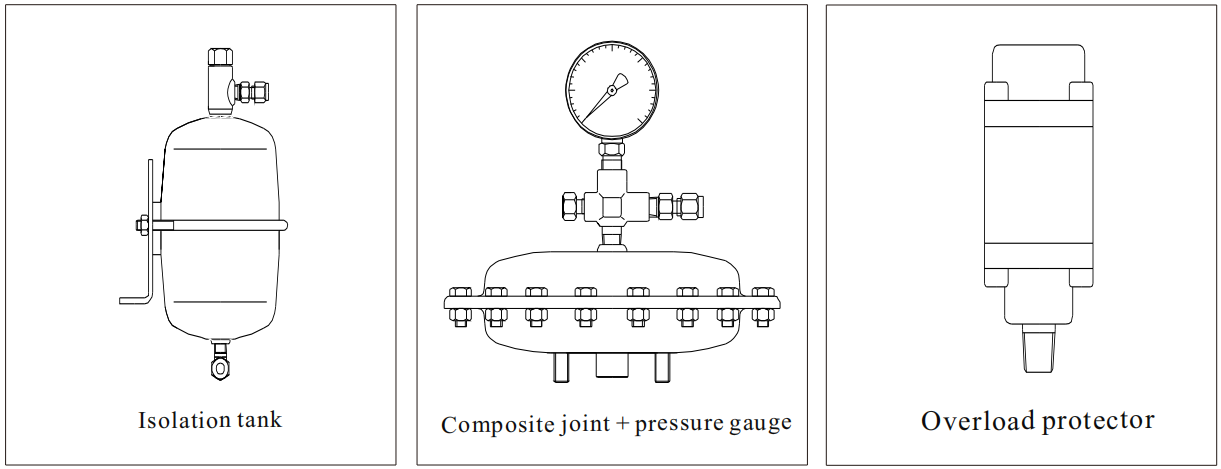

Optional accessories >>>
