Design features    >>>

1. Safety overload protection: Effectively unloads overload pressure under abnormal conditions, preventing valve damag；

2. Stainless steel actuator: This option enhances the valve's appearance, prevents rust, and improves its stability and longevity;

3. Suitable for corrosion-resistant environments;

4. Modular design: Versatile and easy to replace parts;

5. Special valve body: The valve body features a balanced design to achieve more stable control;

6. High precision: the lowest control pressure is 0.5 KPa;

7. It is suitable for micro-pressure control in front of the valve.

Application fields    >>>

☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Others

Execution standard    >>>

Design criteria：ASME B16.34、GB/T 12224-2015

Structural length：IEC60534-3-1-2001、GB/T 12221-2005

Leakage rating：ANSI B16.104、GB/T4213-2008

Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592

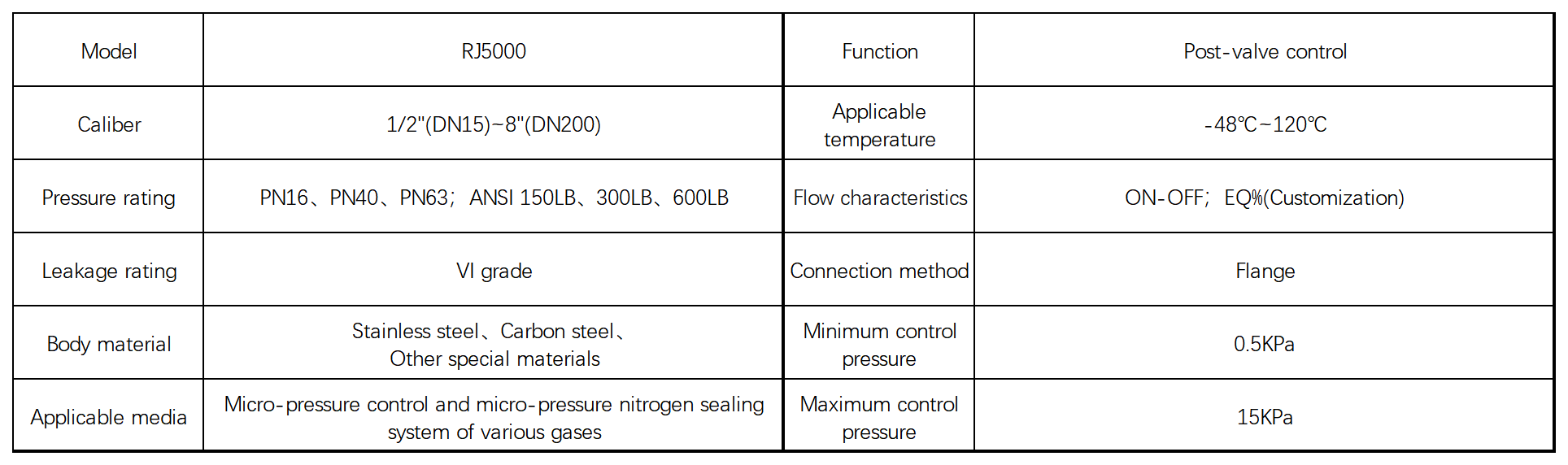

Product parameters    >>>

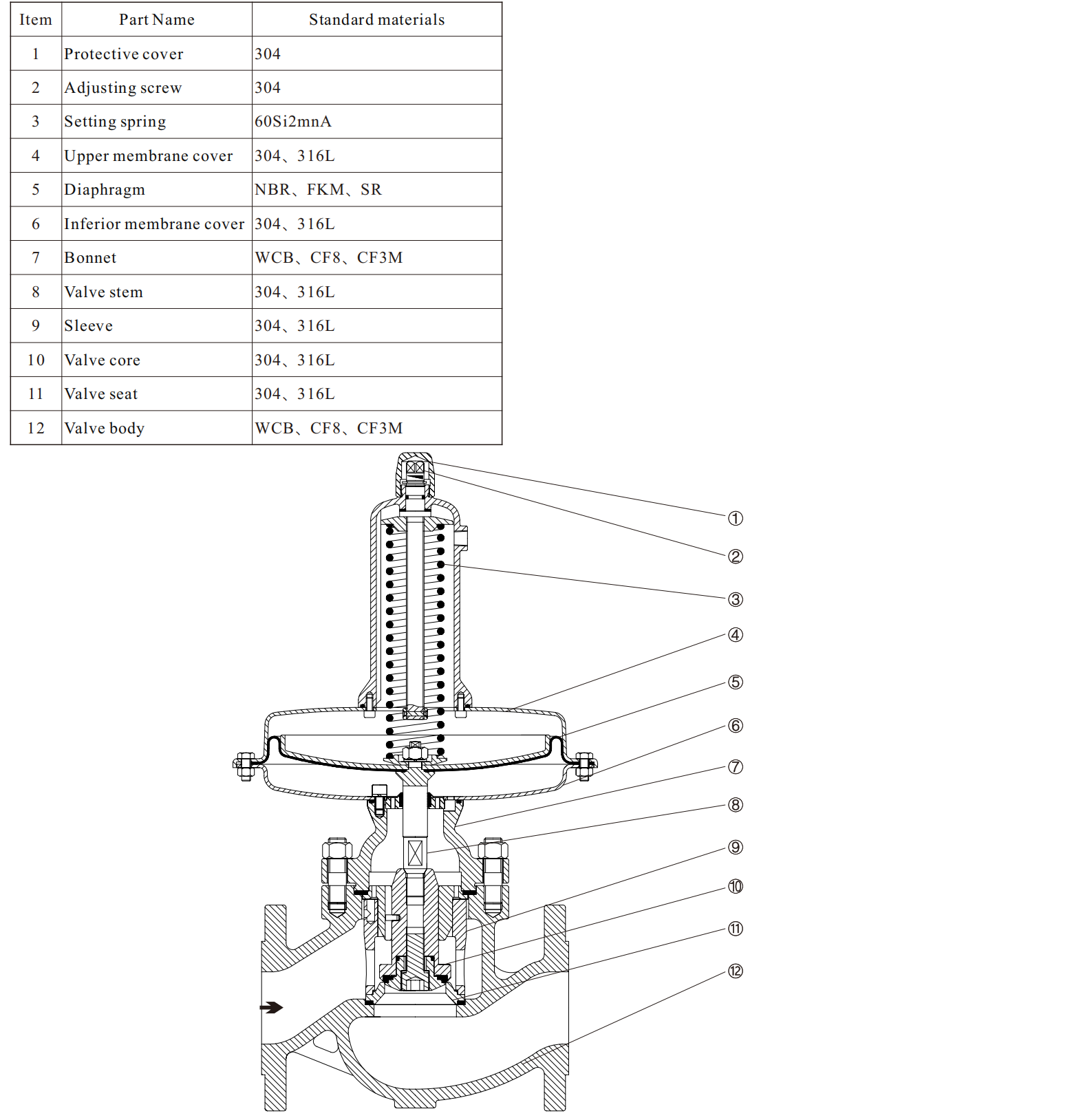

Main components and materials    >>>
