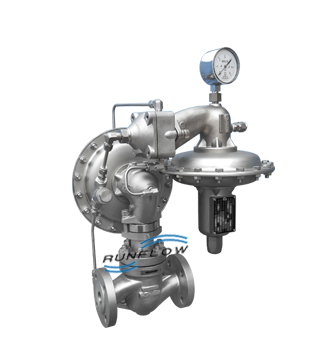

Design features    >>>

1. Safety overload protection: Effectively unloads overload pressure under abnormal conditions, preventing valve damag；

2. Stainless steel actuator: This option enhances the valve's appearance, prevents rust, and improves its stability and longevity;

3. Modular design: Versatile and easy to replace parts;

4. Special valve body: The internal structure is different from pneumatic regulating valves, making it better suited for self-operated control;

5. High precision: the lowest control pressure is 0.15 KPa;

6. Thrust amplification mechanism: Since the control pressure is extremely low, the actuator pressure is limited. The lever force amplification mechanism boosts the thrust sixfold, giving it excellent adjustment and pressure difference resistance;

7. Nozzle-type pilot valve: It can eliminate sliding friction in the commander valve core, providing high sensitivity;

8. Back pressure control: It uses double membrane chambers to manage simultaneous air intake. The back membrane chamber adjusts airflow release through the commander nozzle, ensuring stable and precise control;

9. High pressure difference resistance: The balanced main valve core ensures high pressure resistance;

10. Low overshoot: Traditional pressure regulating valves, due to their primary throttling, often have a large pressure reduction ratio, which can lead to overshoot. In contrast, the commander nozzle incorporates a quick-retracting core. In the event of overpressure, the nozzle valve core opens rapidly to balance the main valve, and the two membrane chambers quickly close the main valve, minimizing overshoot;

11. Single nut setting: The screw adjustment mechanism simplifies pressure regulation, making it quick and convenient.

Application fields    >>>

☼Chemical industry ☼Petroleum industry ☼Electricity industry ☼Pharmaceutical industry ☼Metallurgical industry ☼Food industry ☼Others

Execution standard    >>>

Design criteria：ASME B16.34、GB/T 12224-2015

Structural length：IEC60534-3-1-2001、GB/T 12221-2005

Leakage rating：ANSI B16.104、GB/T4213-2008

Connection standard：ASME B16.5、GB9113、JB79.1~4、HG20592

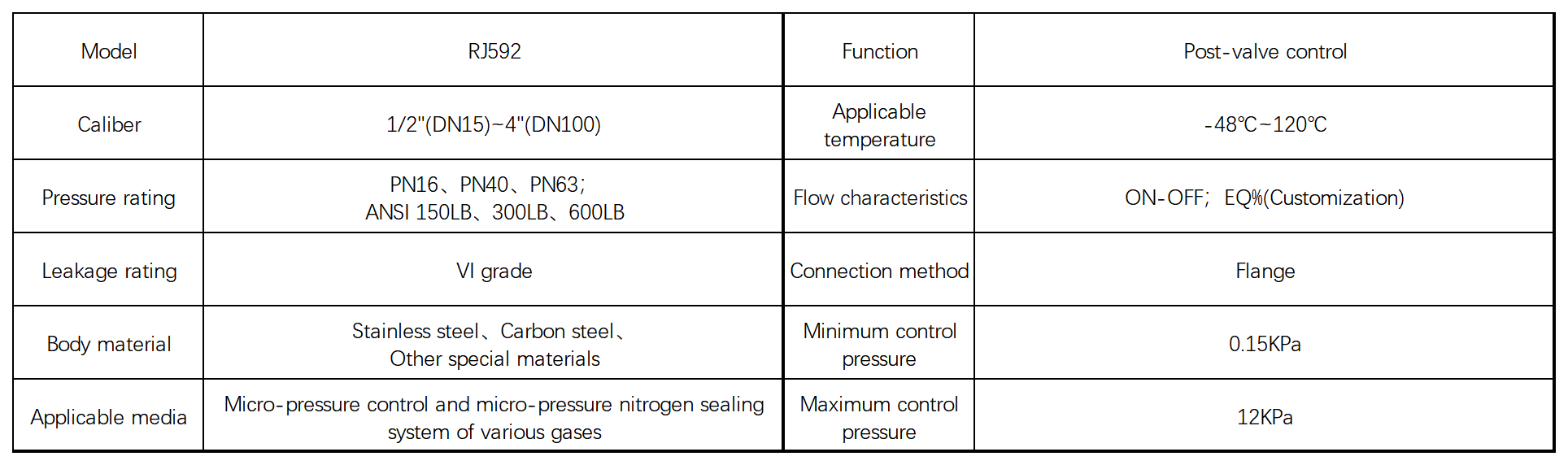

Product parameters    >>>

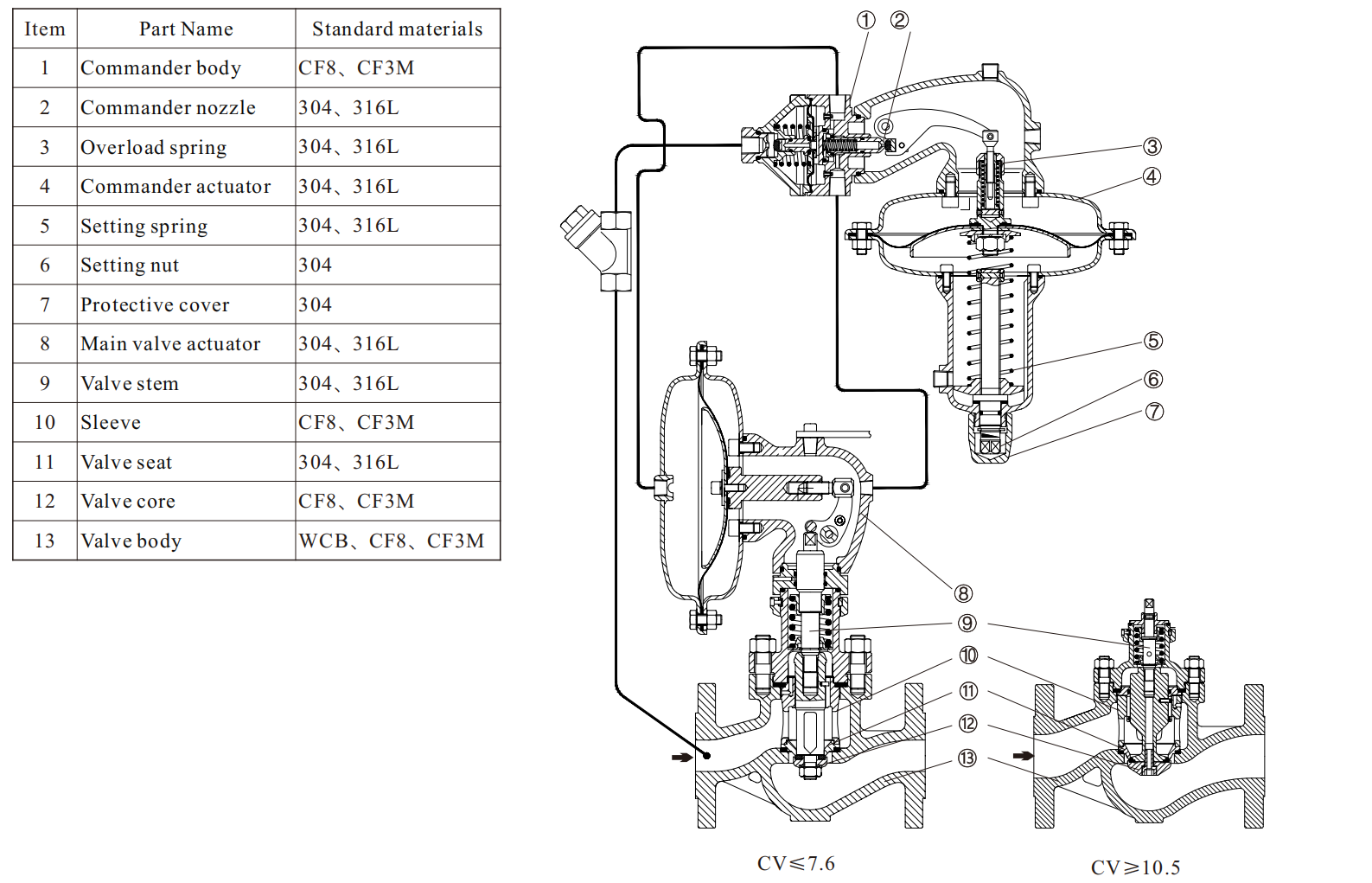

Main components and materials    >>>

Safe discharge    >>>

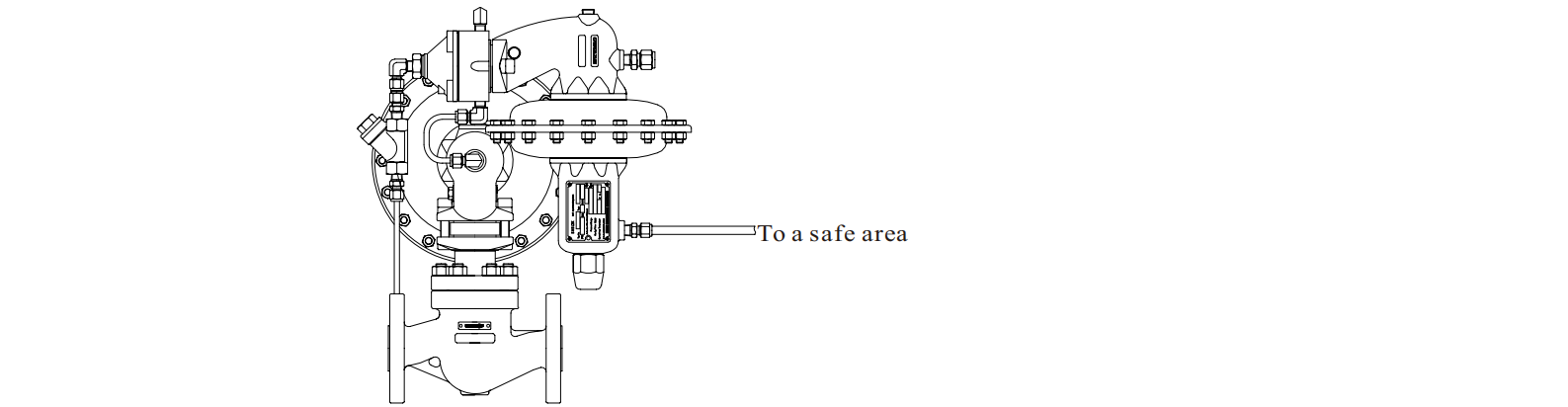

In the event that the diaphragm of the pressure regulating valve is damaged, medium leakage may occur. If leakage is not permitted on site, you can install a drainage pipe on the valve actuator to discharge the medium to a safe area.
